C102

Component ID: 26
Component : C102

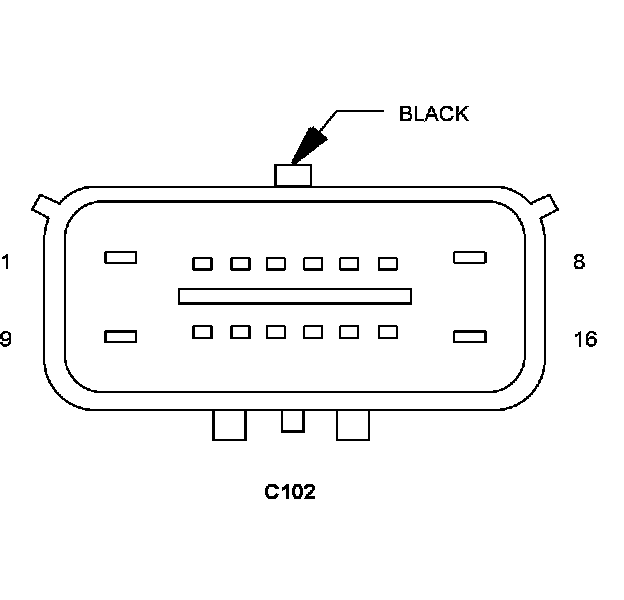

Connector:
Name : C102
Color : BLACK
# of pins : 16
Gender : FEMALE

Pin Description Circuit
1 FUSED RUN RELAY OUTPUT F500 18DG/PK
2 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
3 APP SENSOR GROUND 2 K400 20BR/VT
4 ESM SIGNAL K107 20VT/WT
5 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 18DG/GY
6 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 18DG/YL
7 CAN C BUS (-) D64 20WT/LB
8 CAN C BUS (+) D65 20WT/LG
9 APP SIGNAL 2 K29 20WT/BR
10 S/C SIGNAL 2 V38 20VT/OR
11 DYNAMICS SENSOR LOW DATA LINK D364 20WT/BR
12 DYNAMICS SENSOR HIGH DATA LINK D365 20WT/OR
13 S/C SIGNAL 1 V37 20VT
14 5 VOLT SUPPLY F856 20YL/PK
15 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
16 GROUND Z111 18BK/WT

Component Location - 1

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13

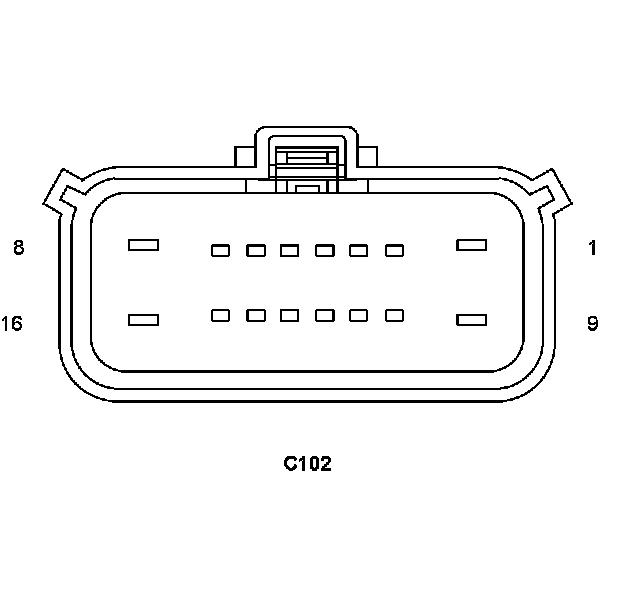

Connector:
Name : C102
Color :
# of pins : 16
Gender : MALE

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13
