C103

Component ID: 27
Component : C103

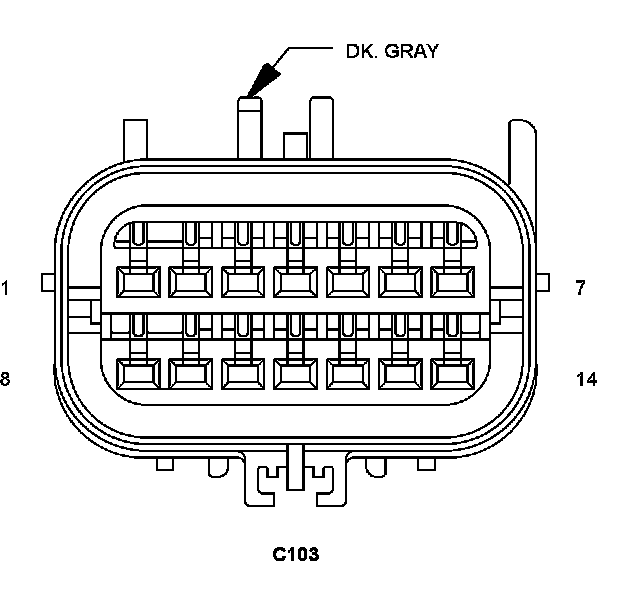

Connector:
Name : C103
Color : DK. GRAY
# of pins : 14
Gender : FEMALE

Pin Description Circuit
1 FUSED B(+) (PUMP) A107 12TN/RD
2 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 18DG/GY
3 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 18DG/YL
4 FUSED RUN RELAY OUTPUT F500 18DG/PK
5 GROUND Z107 12BK/DG
6 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 18DG/DB
7 - -
8 DYNAMICS SENSOR LOW DATA LINK D364 20WT/BR
9 DYNAMICS SENSOR HIGH DATA LINK D365 20WT/OR
10 GROUND Z107 12BK/DG
11 CAN C BUS (-) D64 20WT/LB
12 CAN C BUS (+) D65 20WT/LG
13 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 18DG/LB
14 FUSED B(+) (VALVE) A111 12DG/RD

Component Location - 13

Connector:
Name : C103
Color : DK. GRAY
# of pins : 14
Gender : MALE
