C104

Component ID: 28
Component : C104

Connector:

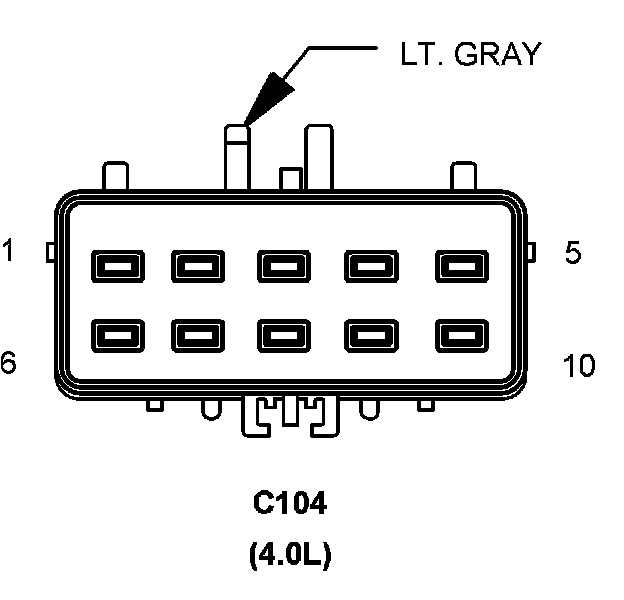

Name : C104
Color : LT. GRAY
# of pins : 10
Qualifier : (4.0L)
Gender : FEMALE




Pin Description Circuit
1 ASD RELAY OUTPUT F343 16PK/BR
2 MTV SIGNAL K234 20DB/OR
3 CKP SIGNAL K24 20BR/LB
4 SENSOR GROUND K900 20DB/DG
5 SRV CONTROL K236 18DB/LG
6 - -
7 5 VOLT SUPPLY F855 20PK/YL
8 GEN FIELD CONTROL K20 18BR/GY
9 5 VOLT SUPPLY F856 20YL/PK
10 SRV SIGNAL K235 20DB/YL

Component Location - 9

4.0L:

Component Location - 10




Component Location - 12






Connector:
Name : C104
Color : LT. GRAY
# of pins : 10
Qualifier : (4.0L)
Gender : MALE




Pin Description Circuit
1 ASD RELAY OUTPUT F343 16PK/BR
2 MTV SIGNAL K234 18DB/OR
3 CKP SIGNAL K24 20BR/LB
4 SENSOR GROUND K900 20DB/DG
5 SRV CONTROL K236 18DB/LG
6 - -
7 5 VOLT SUPPLY F855 20PK/YL
8 GEN FIELD CONTROL K20 18BR/GY
9 5 VOLT SUPPLY F856 20YL/PK
10 SRV SIGNAL K235 18DB/YL

Component Location - 9

4.0L:

Component Location - 10




Component Location - 12
