C105

Component ID: 29
Component : C105

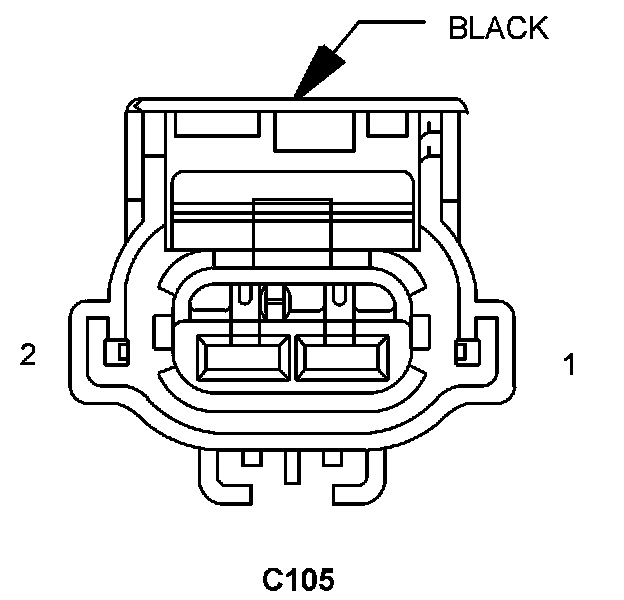

Connector:
Name : C105
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 RAD FAN RELAY CONTROL K173 20BR/VT
Pin Description Circuit
1 RAD FAN RELAY CONTROL K173 18BR/VT
2 FUSED B(+) A104 14YL/RD

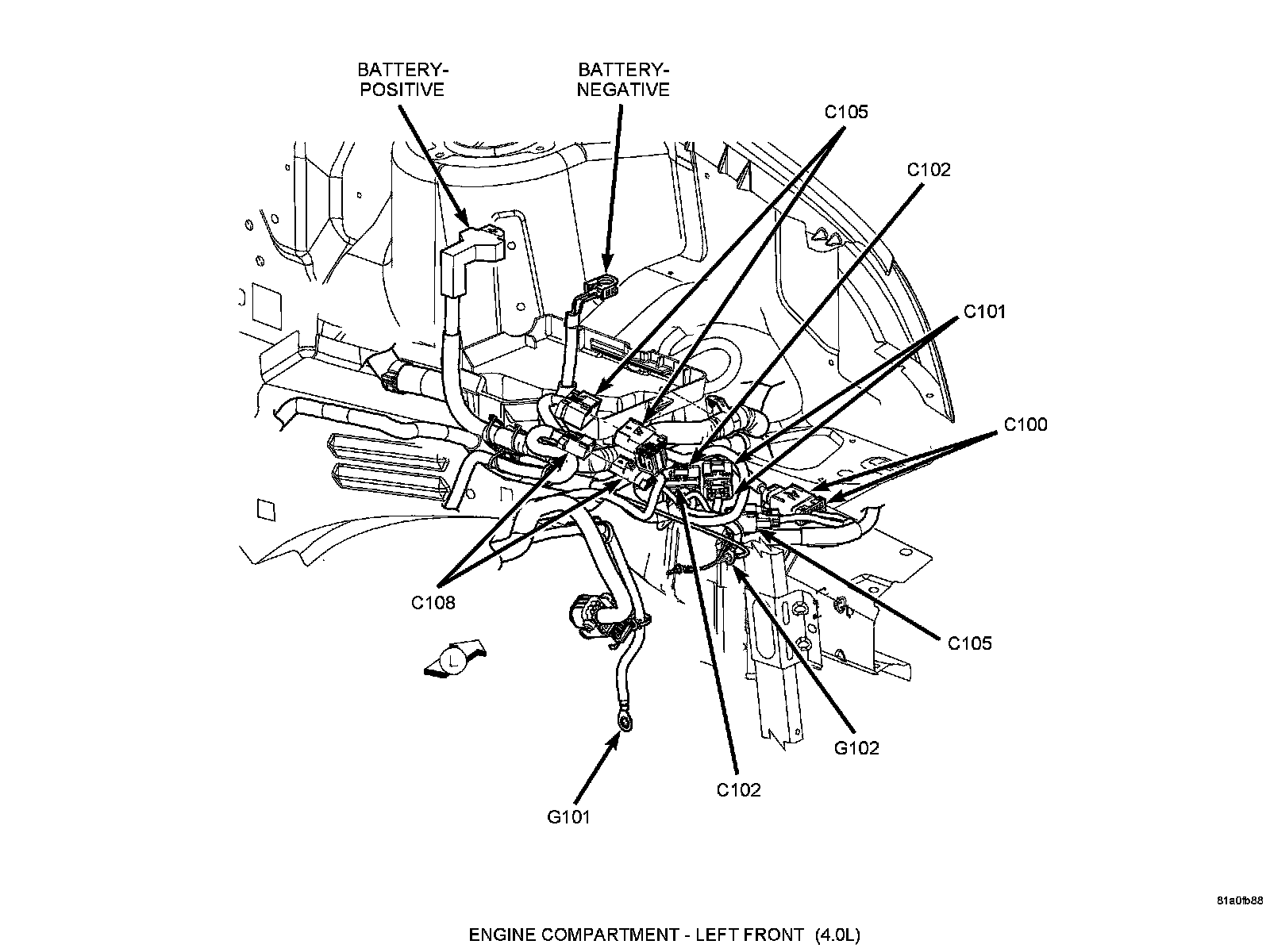

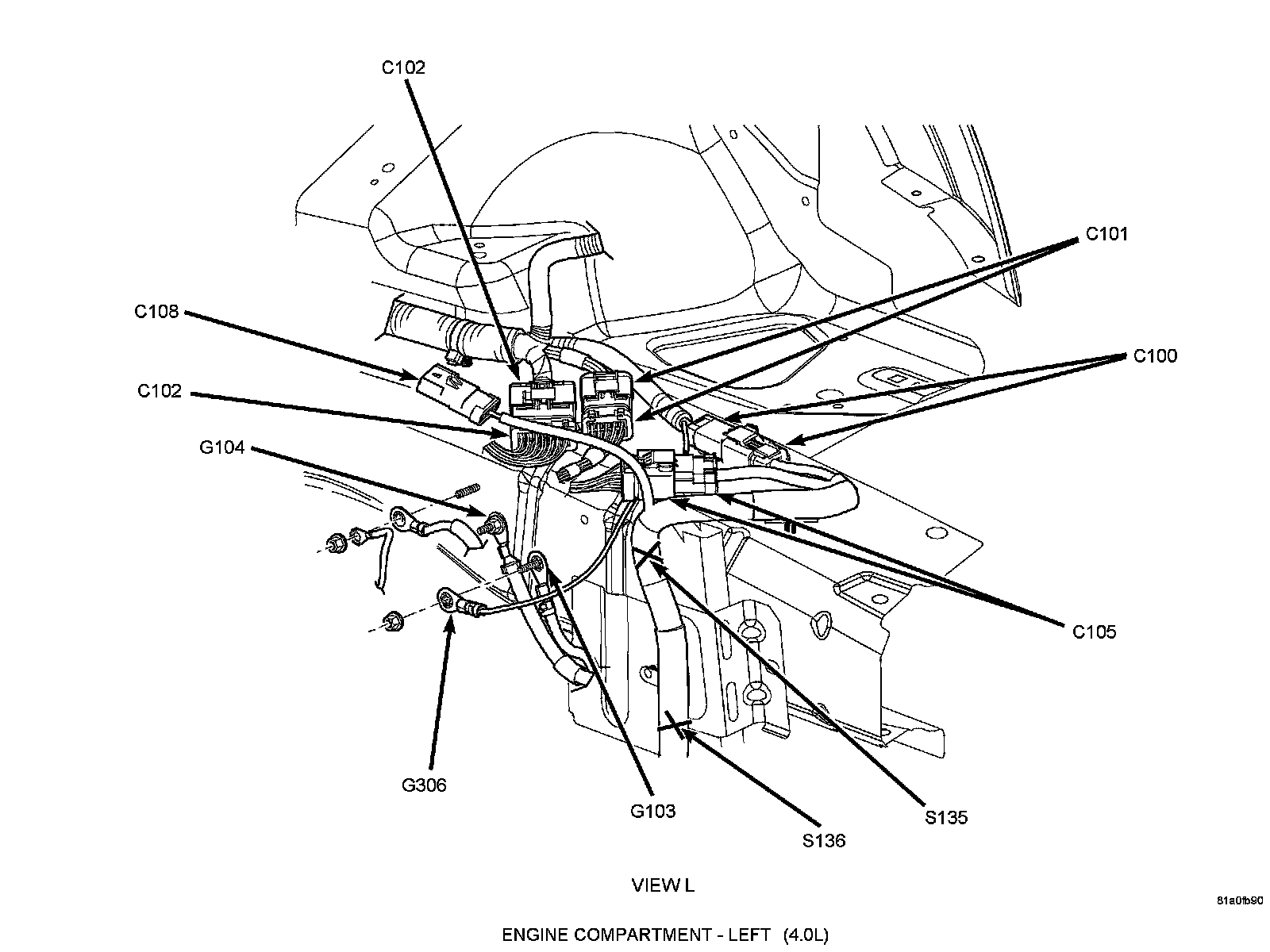

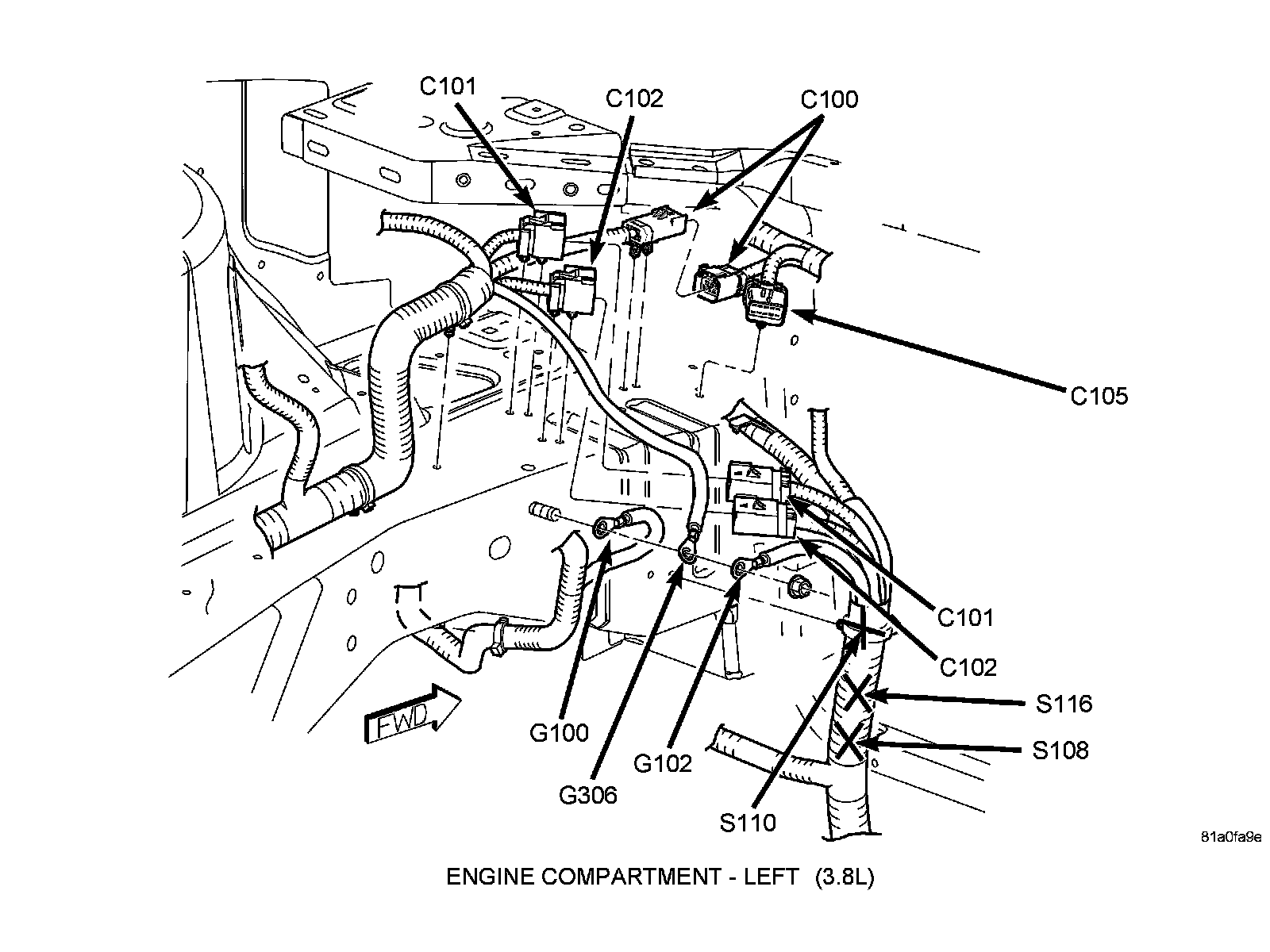

Component Location - 1




Component Location - 4




Component Location - 5




Component Location - 7




Component Location - 8




Component Location - 13

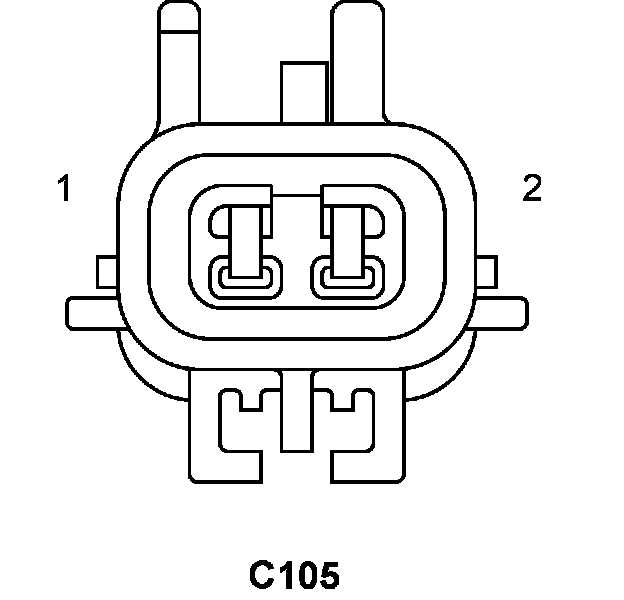

Connector:
Name : C105
Color : BLACK
# of pins : 2
Gender : MALE




Pin Description Circuit
1 RAD FAN RELAY CONTROL K173 18BR/VT
2 FUSED B(+) A104 14YL/RD

Component Location - 1




Component Location - 4




Component Location - 5




Component Location - 7




Component Location - 8




Component Location - 13
