C107

Component ID: 31
Component : C107

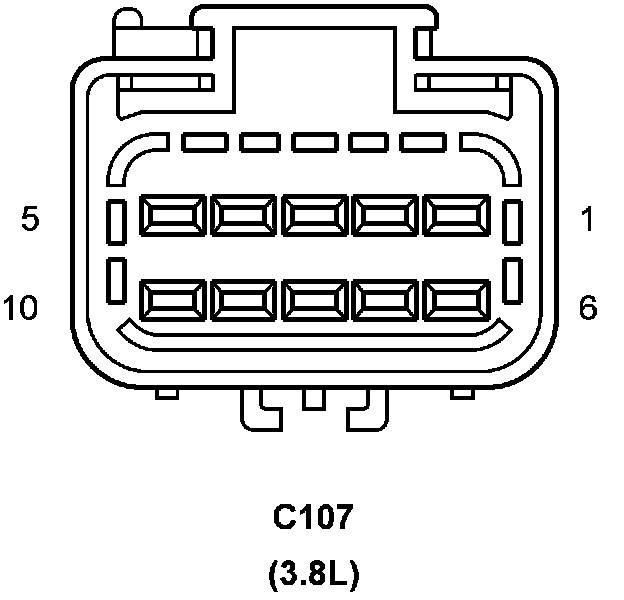

Connector:
Name : C107
Color :
# of pins : 10
Qualifier : (3.8L)
Gender : FEMALE

Pin Description Circuit
1 EGR SIGNAL K34 20DB/LG
2 - -
3 SENSOR GROUND K900 20DB/DG
4 GROUND Z335 18BK/WT
5 ECT SIGNAL K2 18VT/OR
6 EGR CONTROL K35 18DB/VT
7 COIL 3 CONTROL K18 16DB/OR
8 - -
9 - -
10 COIL 2 CONTROL K17 16DB/TN

Component Location - 11

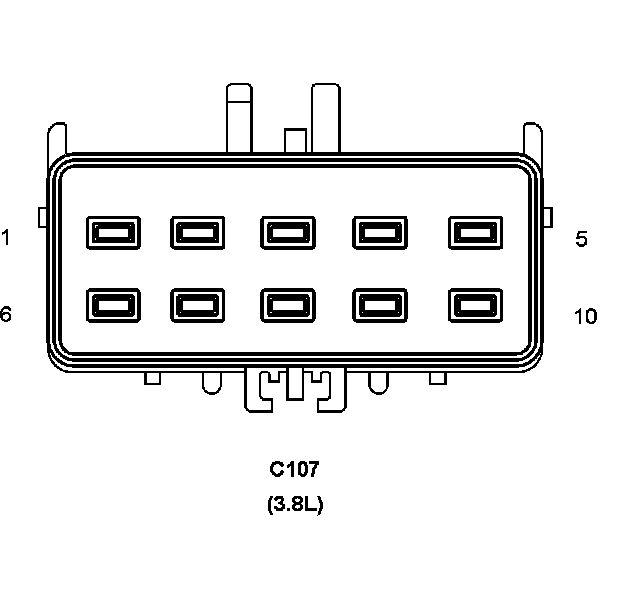

Connector:
Name : C107
Color :
# of pins : 10
Qualifier : (3.8L)
Gender : MALE
