C108

Component ID: 32
Component : C108

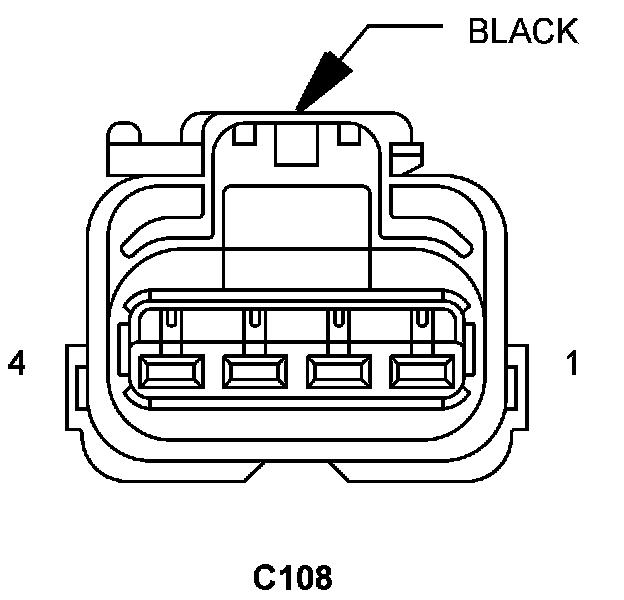

Connector:
Name : C108
Color : BLACK
# of pins : 4
Gender : FEMALE

Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 18DG/WT
2 RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B7 18DG/VT
3 LEFT FRONT WHEEL SPEED SENSOR SIGNAL B8 18DG/TN
4 LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B9 18DG/LG

Component Location - 5

Component Location - 7

Component Location - 8

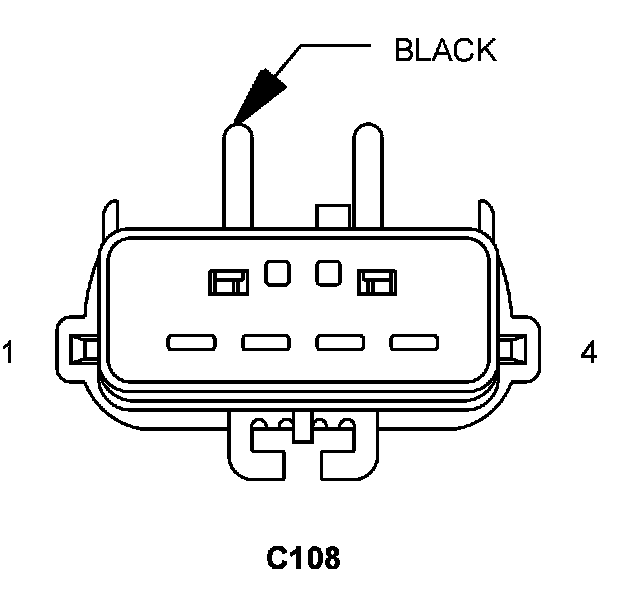

Connector:
Name : C108
Color : BLACK
# of pins : 4
Gender : MALE

Component Location - 7

Component Location - 8
