C201
Component ID: 34
Component : C201

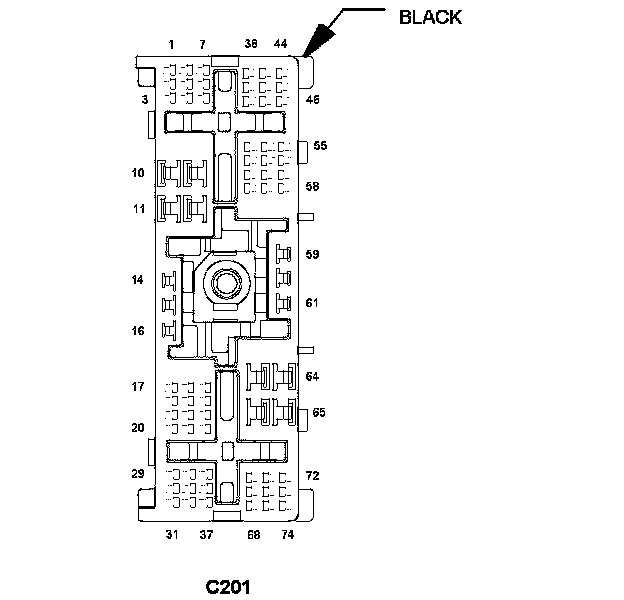

Connector:
Name : C201
Color : BLACK
# of pins : 74
Gender : FEMALE
Pin Description Circuit
1 PARK BRAKE SWITCH SENSE B25 20DG/WT
2 FUSED B(+) A106 20LB/RD
3 FUSED RUN RELAY OUTPUT F500 18DG/PK
4 S/C SWITCH GROUND K975 18BR/OR
5 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
6 GROUND Z104 20BK/LG
7 IGNITION SWITCH OUTPUT (START) T751 20YL
8 GROUND Z18 18BK/LB
9 - -
10 - -
11 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
12 - -
13 - -
14 FUSED B(+) A105 18DB/RD
15 FUSED B(+) A118 20RD/OR
16 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
17 S/C SIGNAL 2 V38 20VT/OR
18 HORN SWITCH SENSE X3 20DG/VT
19 S/C SIGNAL 1 V37 20VT
20 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
21 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
22 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20LB/TN
23 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
24 CAMERA SIGNAL X970 22GY/OR
25 CAMERA RETURN X971 22GY/LB
26 CAMERA SHIELD X972 22
27 PCI BUS D25 20WT/VT
28 CAN B BUS(-) D54 20WT
29 CAN B BUS(+) D55 20WT/OR
30 ORC RUN DRIVER F100 20PK/VT
31 ORC RUN-START DRIVER F201 20PK/LB
32 - -
33 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
34 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
35 - -
36 CAN C BUS (-) D64 20WT/LB
37 CAN C BUS (+) D65 20WT/LG
38 IGNITION SWITCH OUTPUT (RUN-START) F2 18PK/YL
39 FLASH PROGRAM ENABLE D123 20WT/BR
40 PANEL LAMPS DRIVER E12 18OR/GY
41 REAR BOOSTER FAN CONTROL C57 20DB/LB
42 REAR MODE DOOR DRIVER (B) C53 20LB
43 REAR MODE DOOR DRIVER (A) C153 20DB/BR
44 - -
45 FUSED RUN RELAY OUTPUT F504 20GY/PK
46 REAR FAN ON INDICATOR DRIVER G21 22VT/WT
47 REAR FAN SENSE C31 20LB/YL
48 REAR FAN SENSE SUPPLY C11 22LB/OR
49 REAR FAN SENSE RETURN C931 22DB/TN
50 - -
51 - -
52 - -
53 - -
54 GROUND Z111 18BK/WT
55 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
56 - -
57 - -
58 - -
59 FUSED IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/GY
60 FUSED B(+) A108 18LG/RD
61 - -
62 - -
63 - -
64 - -
65 - -
66 RED SIGNAL G400 20VT/LB
67 - -
68 BLUE SIGNAL G410 20VT/LG
69 - -
70 GREEN SIGNAL G420 20VT/BR
71 - -
72 SCREEN SYNCHRONIZE G430 20VT/GY
73 - -
74 SHIELD G591 22
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

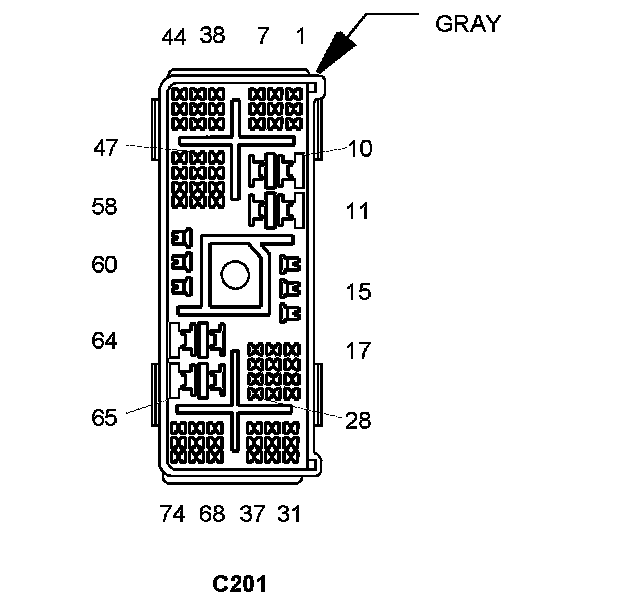

Connector:
Name : C201
Color : GRAY
# of pins : 74
Gender : MALE
Pin Description Circuit
1 PARK BRAKE SWITCH SENSE B25 20DG/WT
2 FUSED B(+) A106 20LB/RD
3 FUSED RUN RELAY OUTPUT F500 18DG/PK
4 SENSOR GROUND K975 20DB/OR
5 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
6 GROUND Z104 20BK/LG
7 IGNITION SWITCH OUTPUT (START) T751 20YL
8 - -
9 - -
10 - -
11 FUSED FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
12 - -
13 - -
14 FUSED B(+) A105 18DB/RD
14 FUSED B(+) A105 20DB/RD
15 FUSED B(+) A118 20RD/OR
16 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
17 S/C SIGNAL 2 V38 20VT/OR
18 HORN SWITCH SENSE X3 20DG/VT
19 S/C SIGNAL 1 V37 20VT
20 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
21 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
22 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20LB/TN
23 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
24 CAMERA SIGNAL X970 22GY/OR
25 CAMERA RETURN X971 22GY/LB
26 CAMERA SHIELD X972 22
27 PCI BUS D25 20WT/VT
28 CAN B BUS(-) D54 20WT
29 CAN B BUS(+) D55 20WT/OR
30 ORC RUN DRIVER F100 20PK/VT
31 ORC RUN-START DRIVER F201 20PK/LB
32 - -
33 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
34 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
35 - -
36 CAN C BUS (-) D64 20WT/LB
37 CAN C BUS (+) D65 20WT/LG
38 IGNITION SWITCH OUTPUT (RUN-START) F2 18PK/YL
39 FLASH PROGRAM ENABLE D123 20WT/BR
40 PANEL LAMPS DRIVER E12 18OR/GY
41 REAR BOOSTER FAN CONTROL C57 22DB/LB
42 REAR MODE DOOR DRIVER (B) C53 22LB
43 REAR MODE DOOR DRIVER (A) C153 22DB/BR
44 - -
45 FUSED RUN RELAY OUTPUT F504 20GY/PK
46 REAR FAN ON INDICATOR DRIVER G21 22VT/WT
47 REAR FAN SENSE C31 22LB/YL
48 REAR FAN SENSE SUPPLY C11 22LB/OR
49 REAR FAN SENSE RETURN C931 22DB/TN
50 - -
51 - -
52 - -
53 - -
54 GROUND Z111 18BK/WT
55 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
56 - -
57 - -
58 - -
59 FUSED IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/GY
60 FUSED B(+) A108 18LG/RD
61 - -
62 - -
63 - -
64 - -
65 - -
66 RED SIGNAL G400 20VT/LB
67 - -
68 BLUE SIGNAL G410 20VT/LG
69 - -
70 GREEN SIGNAL G420 20VT/BR
71 - -
72 SCREEN SYNCHRONIZE G430 20VT/GY
73 - -
74 SHIELD G591 22
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25
