C304

Component ID: 42
Component : C304

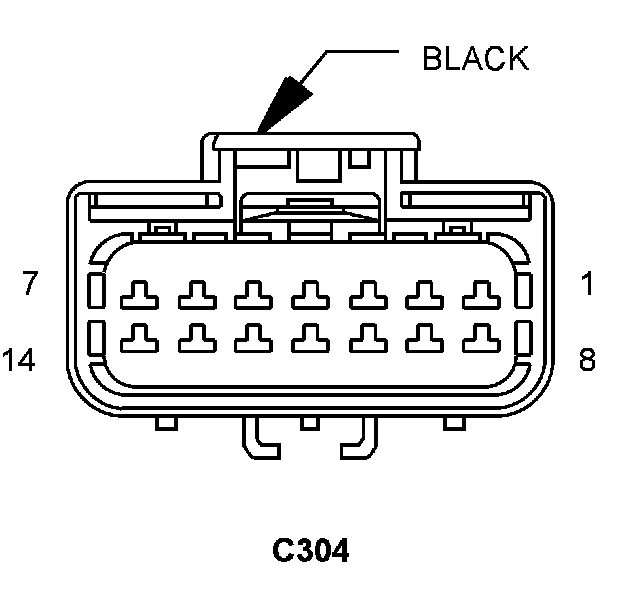

Connector:
Name : C304
Color : BLACK
# of pins : 14
Gender : FEMALE

Pin Description Circuit
1 GROUND G982 20VT/TN
2 AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
3 AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
4 PASSENGER REAR WINDOW DRIVER (DOWN) Q212 14OR/VT
5 FUSED B(+) A214 18RD/LB
6 DOOR LOCK DRIVER P222 18VT/DG
7 DOOR UNLOCK DRIVER P292 18VT/LG
8 FUSED DOOR NODE RELAY OUTPUT F516 12PK
9 PANEL LAMPS DRIVER E26 20OR/GY
10 PASSENGER REAR WINDOW DRIVER (UP) Q112 14OR/BR
11 PASSENGER REAR WINDOW SWITCH MUX Q2 20WT/TN
12 PCI BUS D25 20WT/VT
13 FLASH PROGRAM ENABLE D123 20WT/BR
14 GROUND Z822 12BK/BR

Component Location - 30

Component Location - 41

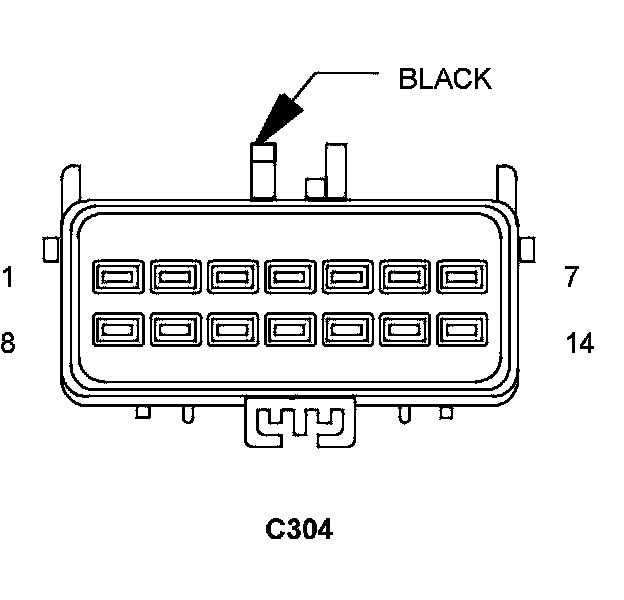

Connector:
Name : C304
Color : BLACK
# of pins : 14
Gender : MALE

Component Location - 41
