C306

Component ID: 44
Component : C306

Connector:
Name : C306
Color : LT. GRAY
# of pins : 10
Gender : FEMALE

Pin Description Circuit
1 PASSENGER REAR WINDOW DRIVER (UP) Q112 14OR/BR
2 PASSENGER REAR WINDOW DRIVER (DOWN) Q212 14OR/VT
3 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
4 DOOR LOCK DRIVER P222 18VT/DG
5 DOOR UNLOCK DRIVER P292 18VT/LG
6 PANEL LAMPS DRIVER E26 20OR/GY
7 GROUND G982 20VT/TN
8 PASSENGER REAR WINDOW SWITCH MUX Q2 20WT/TN
9 AMPLIFIED RIGHT REAR DOOR SPEAKER (+) X206 18DG/LG
10 AMPLIFIED RIGHT REAR DOOR SPEAKER (-) X296 18DG/GY

Component Location - 30

Component Location - 43

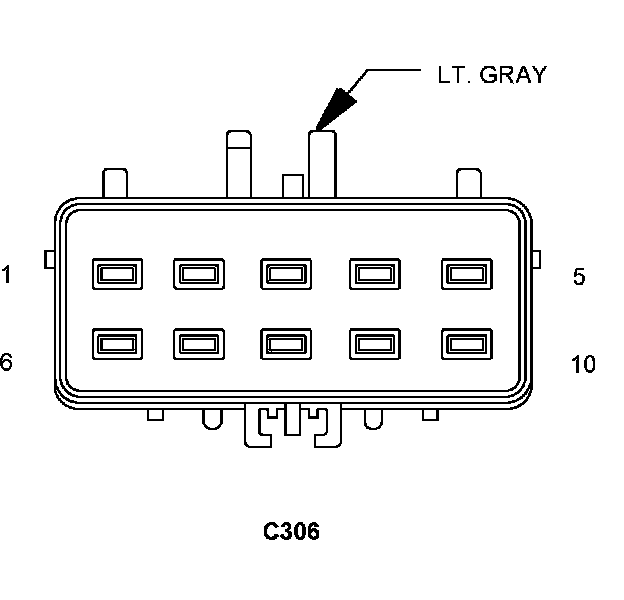

Connector:
Name : C306
Color : LT. GRAY
# of pins : 10
Gender : MALE

Component Location - 43
