Clock

Component ID: 179
Component : MODULE-CLOCK-ANALOG

Connector:

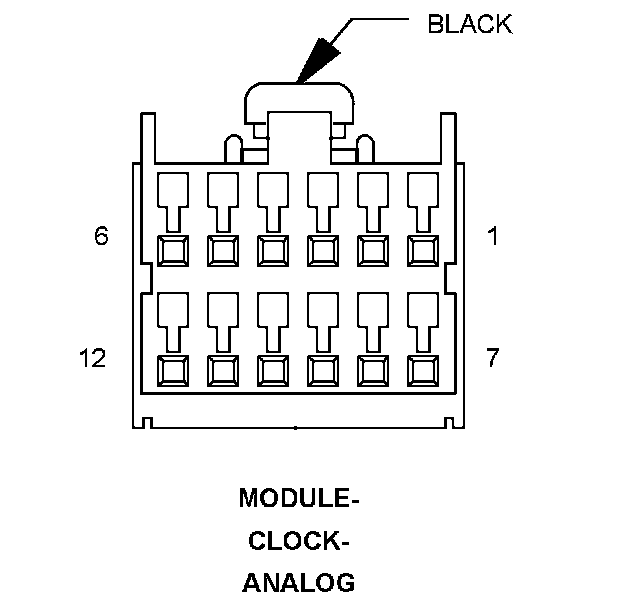

Name : MODULE-CLOCK-ANALOG
Color : BLACK
# of pins : 12




Pin Description Circuit
1 FUSED B(+) A118 20RD/OR
2 EVIC MUX SIGNAL G106 20VT/OR
3 NAV MUX SIGNAL G107 22VT/YL
4 VTSS INDICATOR DRIVER G69 22VT/WT
5 PASSENGER AIRBAG INDICATOR DRIVER G104 20VT/GY
6 HAZARD SWITCH SENSE L91 20WT/DB
7 PANEL LAMPS DRIVER E12 20OR/GY
8 - -
9 FUSED IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/GY
10 - -
11 EVIC/NAV MUX RETURN G907 20VT
12 GROUND Z108 20BK/LG

Component Location - 14




Component Location - 17
