Compressor Clutch

Component ID: 61
Component : CLUTCH-A/C COMPRESSOR

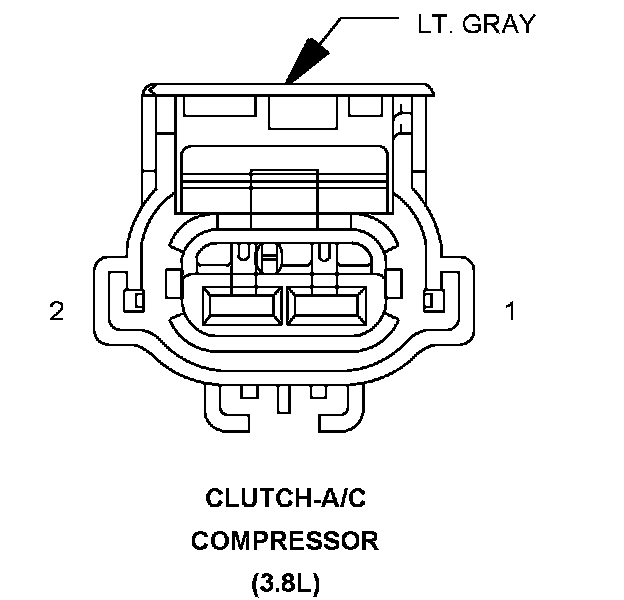

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : LT. GRAY
# of pins : 2
Qualifier : (3.8L)




Pin Description Circuit
1 A/C COMPRESSOR CLUTCH RELAY OUTPUT C3 18DB/YL
2 GROUND Z153 18BK/GY

Component Location - 11




Component Location - 13

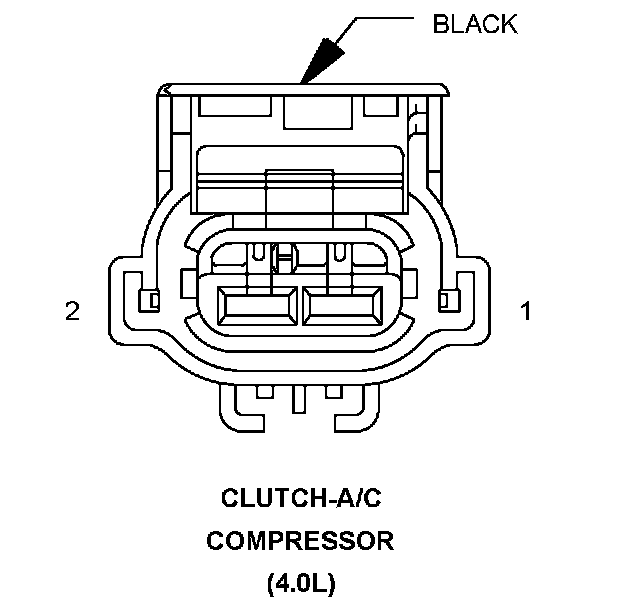

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2
Qualifier : (4.0L)




Pin Description Circuit
1 A/C COMPRESSOR CLUTCH RELAY OUTPUT C3 18DB/YL
2 GROUND Z153 18BK/GY

Component Location - 11




Component Location - 13
