Switch-Speed Control-Left

Component ID: 419
Component : SWITCH-SPEED CONTROL-LEFT

Connector:
Name : SWITCH-SPEED CONTROL-LEFT
Color : BLACK
# of pins : 3




Pin Description Circuit
1 S/C SIGNAL 2 V38 20VT/OR
2 S/C SWITCH GROUND K975 22BR/OR
3 S/C SIGNAL 1 V37 20VT

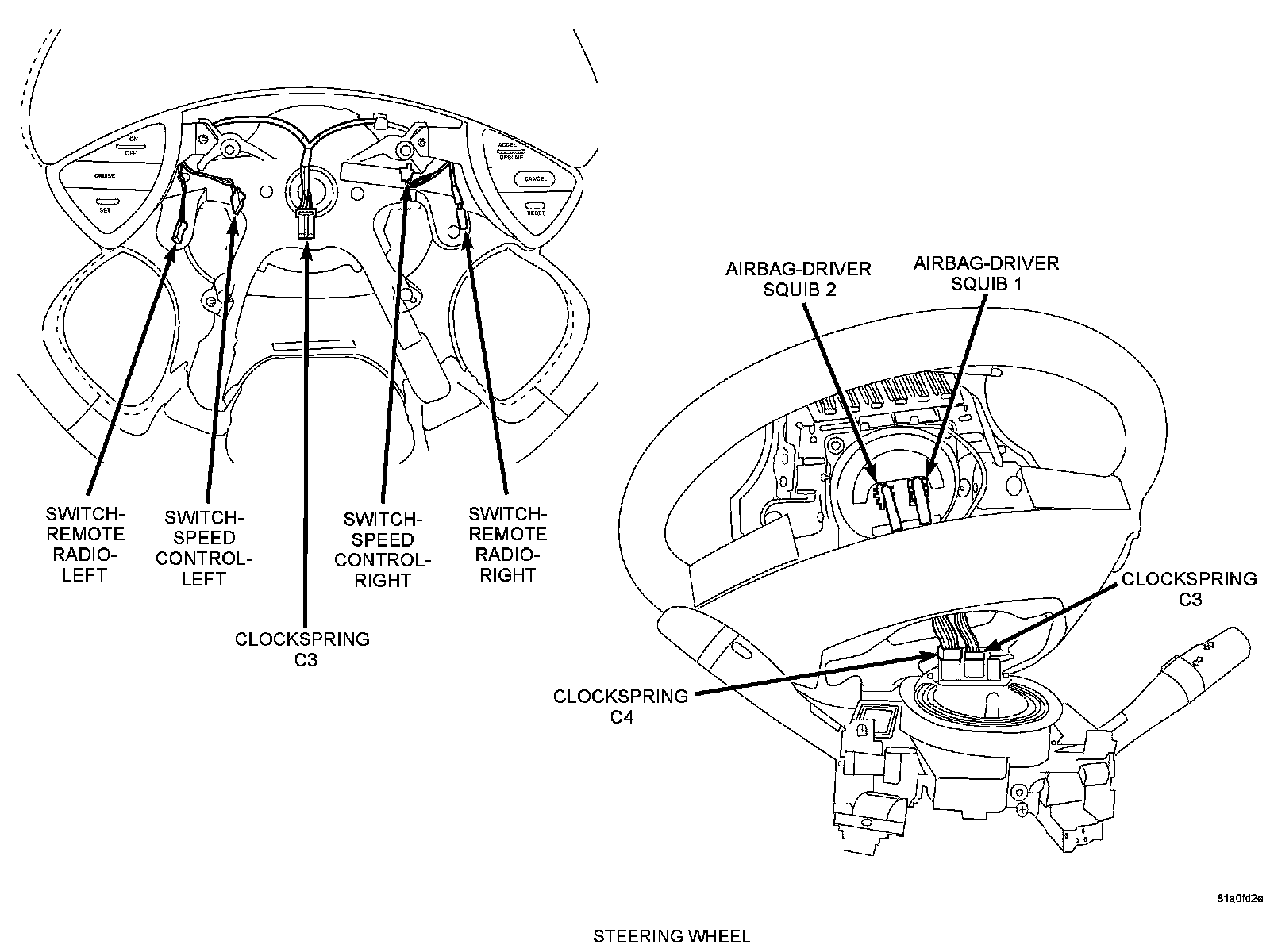

Component Location - 22
