Driver/Vehicle Information Display

Component ID: 182

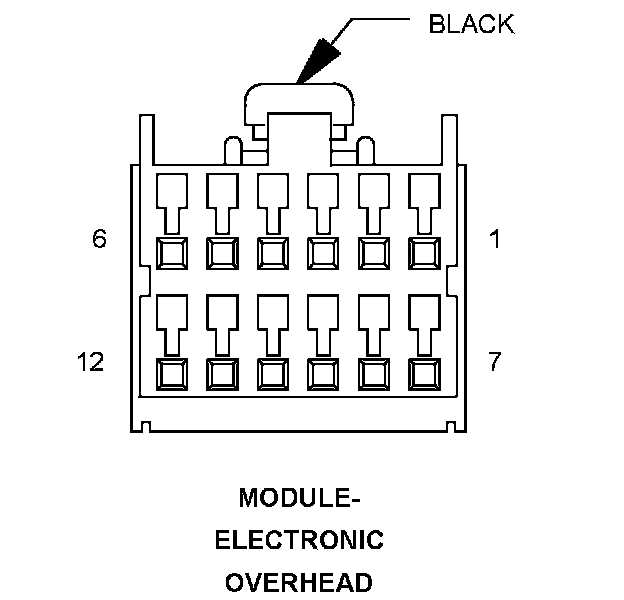

Component : MODULE-ELECTRONIC OVERHEAD

Connector:
Name : MODULE-ELECTRONIC OVERHEAD
Color : BLACK
# of pins : 12




Pin Description Circuit
1 SUNROOF VENT Q4 20OR/WT
2 LIFTGATE SWITCH MUX G25 22VT/TN
3 PCI BUS D25 20WT/VT
4 GROUND Z113 18BK/DB
5 FUSED B(+) A114 20GY/RD
6 FUSED ACCESSORY RELAY OUTPUT F316 20BK/PK
7 - -
8 - -
9 SUNROOF OPEN Q3 22OR/TN
10 SUNROOF CLOSE Q5 22OR/LB
11 AUTOMATIC HEADLAMP SIGNAL L24 20BK/GY
12 BACKUP LAMP SIGNAL L11 20BK/WT

Component Location - 44
