Injector-Fuel 4

Component ID: 139

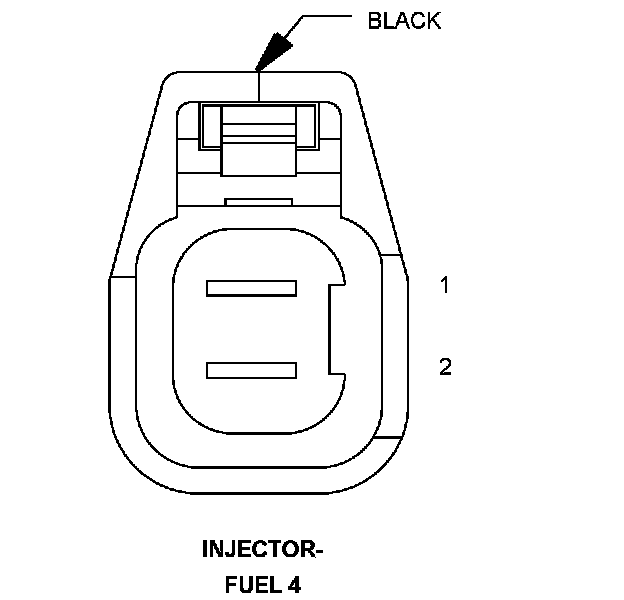

Component : INJECTOR-FUEL 4

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2




Pin Description Circuit
1 ASD RELAY OUTPUT K344 16BR/GY
Pin Description Circuit
1 ASD RELAY OUTPUT F343 16PK/BR
2 INJECTOR 4 CONTROL K14 16BR/TN
