Injector-Fuel 5

Component ID: 140

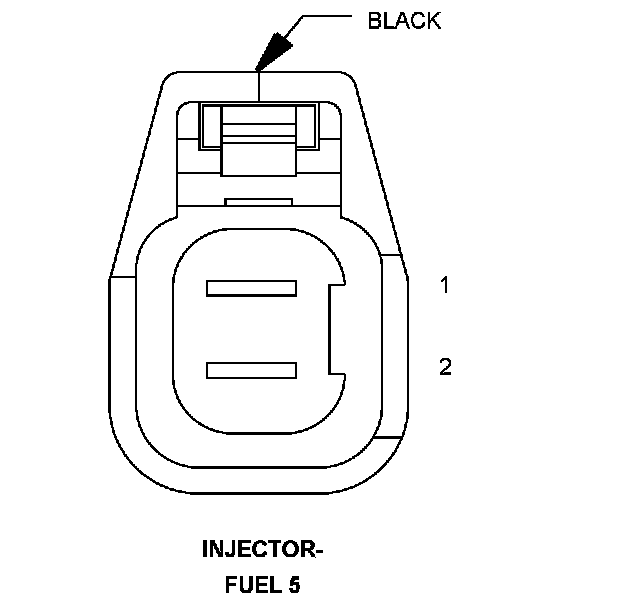

Component : INJECTOR-FUEL 5

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2




Pin Description Circuit
1 ASD RELAY OUTPUT K344 16BR/GY
Pin Description Circuit
1 ASD RELAY OUTPUT F343 16PK/BR
2 INJECTOR 5 CONTROL K38 16BR/OR

Component Location - 12
