System Diagram

Component ID: 22
Component : BACKLITE-ELECTRIC HEATED

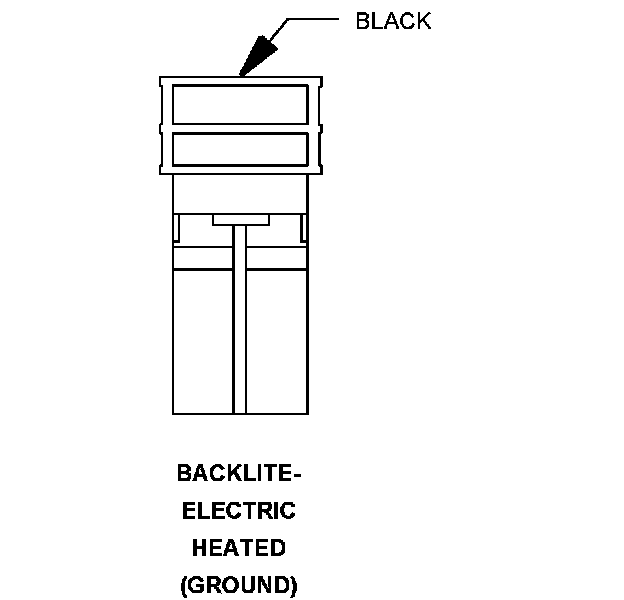

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (GROUND)




Pin Description Circuit
1 GROUND Z255 12BK/WT

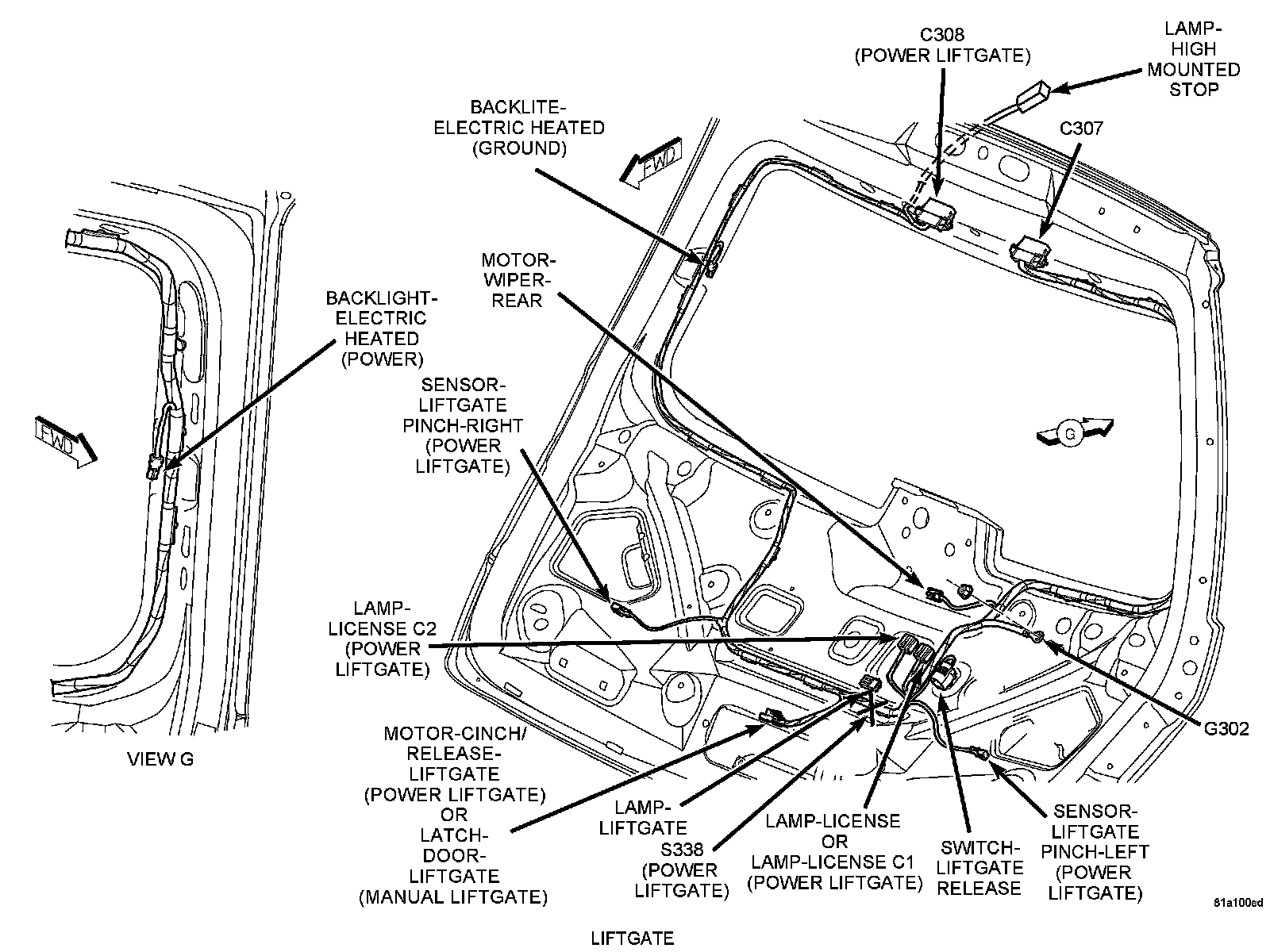

Component Location - 45

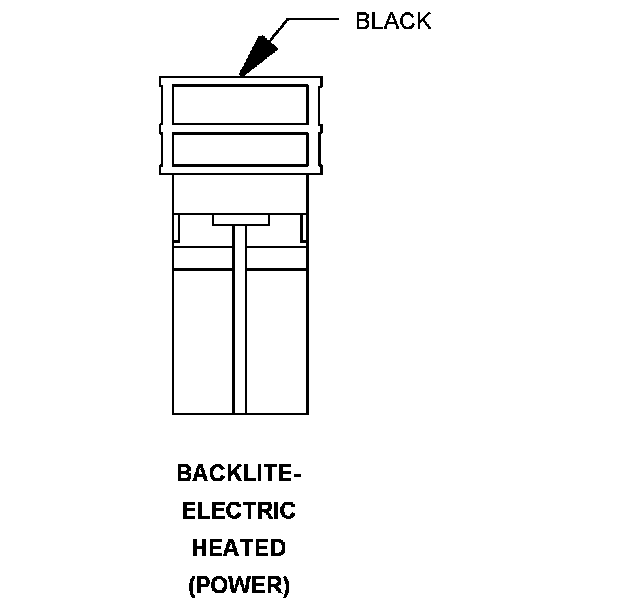

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (POWER)




Pin Description Circuit
1 REAR WINDOW DEFOGGER RELAY OUTPUT C15 12DB/WT

Component Location - 45
