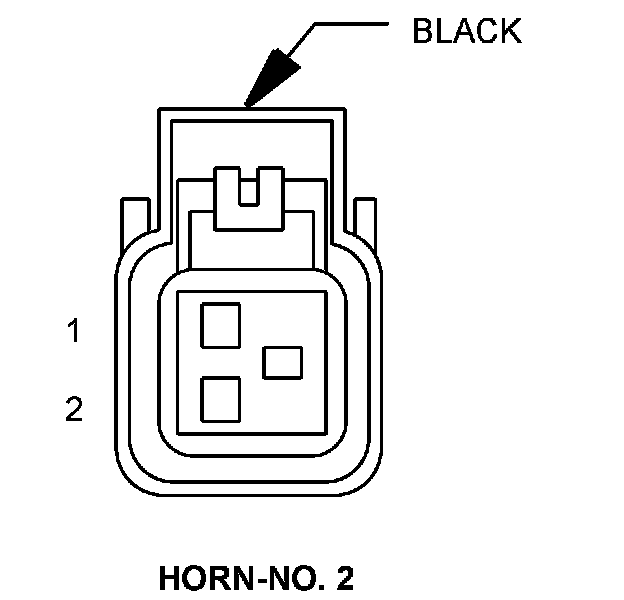

Horn-No. 2
Component ID: 135
Component : HORN-NO. 2
Connector:
Name : HORN-NO. 2
Color : BLACK
# of pins : 2
Pin Description Circuit
1 GROUND Z299 16BK/OR
2 HORN RELAY OUTPUT X2 16DG/OR
Component Location - 3
Component ID: 135
Component : HORN-NO. 2
Connector:
Name : HORN-NO. 2
Color : BLACK
# of pins : 2
Pin Description Circuit
1 GROUND Z299 16BK/OR
2 HORN RELAY OUTPUT X2 16DG/OR
Component Location - 3
