Capacitor-Ignition

Component ID: 56

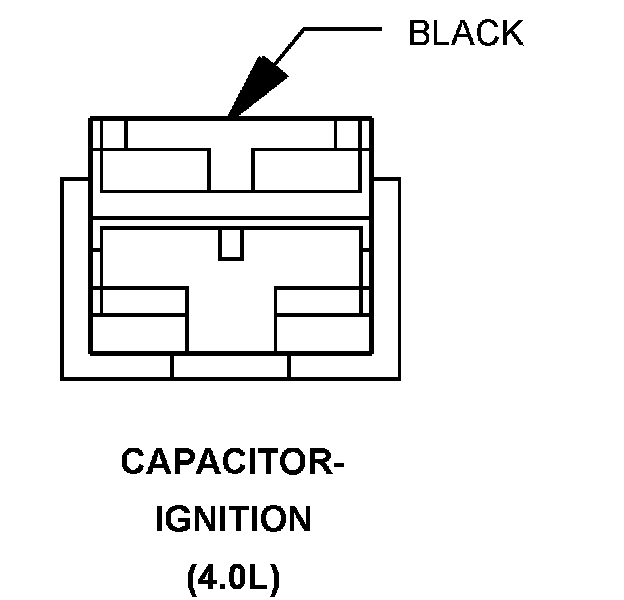

Component : CAPACITOR-IGNITION

Connector:
Name : CAPACITOR-IGNITION
Color : BLACK
# of pins : 1
Qualifier : (4.0L)




Pin Description Circuit
1 ASD RELAY OUTPUT F343 16PK/BR
