Lamp-Reading-Front

Component ID: 159

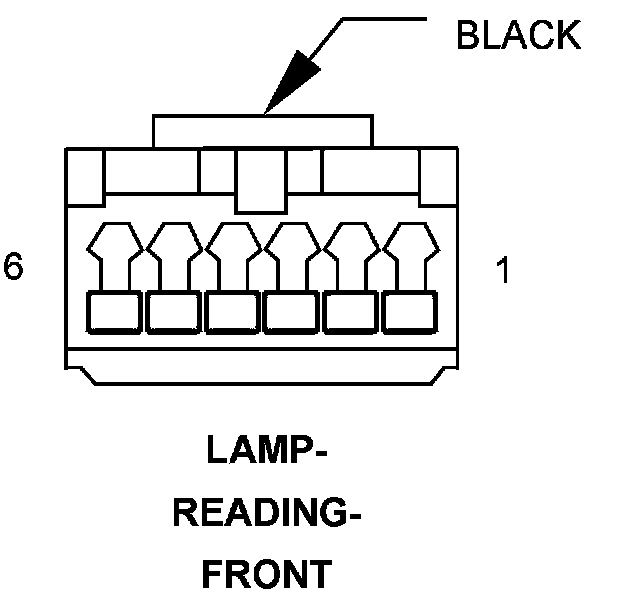

Component : LAMP-READING-FRONT

Connector:
Name : LAMP-READING-FRONT
Color : BLACK
# of pins : 6




Pin Description Circuit
1 - -
2 GROUND Z327 18BK/WT
3 - -
4 RAIL LAMPS DRIVER M27 18YL/LB
5 FRONT READING/COURTESY LAMPS DRIVER M24 18YL/WT
6 - -

Component Location - 44
