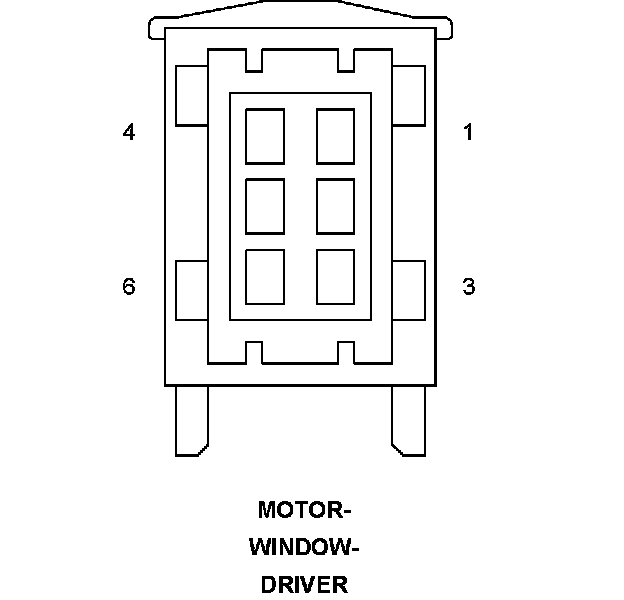

Motor-Window-Driver

Component ID: 209
Component : MOTOR-WINDOW-DRIVER

Connector:
Name : MOTOR-WINDOW-DRIVER
Color :
# of pins : 6




Pin Description Circuit
1 FUSED B(+) A916 14RD/GY
2 - -
3 - -
4 GROUND Z821 14BK/BR
5 - -
6 LIN BUS D500 20WT

Component Location - 41
