Motor-Window-Passenger

Component ID: 211

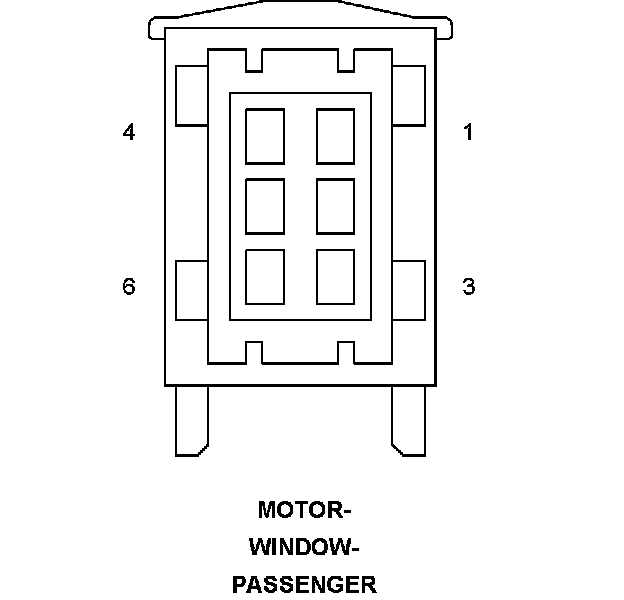

Component : MOTOR-WINDOW-PASSENGER

Connector:
Name : MOTOR-WINDOW-PASSENGER
Color :
# of pins : 6




Pin Description Circuit
1 FUSED B(+) A916 14RD/VT
2 - -
3 - -
4 GROUND Z822 14BK/BR
5 - -
6 LIN BUS D505 20WT/DB

Component Location - 41
