Motor-Window-Passenger Rear

Component ID: 212

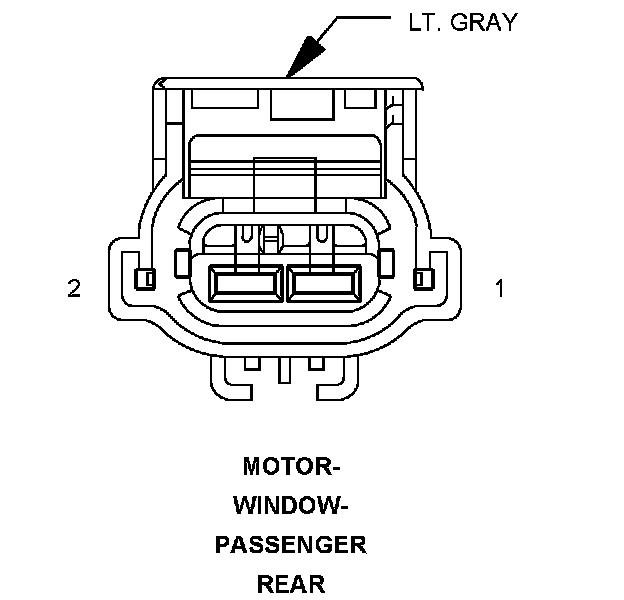

Component : MOTOR-WINDOW-PASSENGER REAR

Connector:
Name : MOTOR-WINDOW-PASSENGER REAR
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 PASSENGER REAR WINDOW DRIVER (DOWN) Q212 14OR/VT
2 PASSENGER REAR WINDOW DRIVER (UP) Q112 14OR/BR

Component Location - 43
