Fan Module-Radiator Cooling No. 1

Component ID: 72

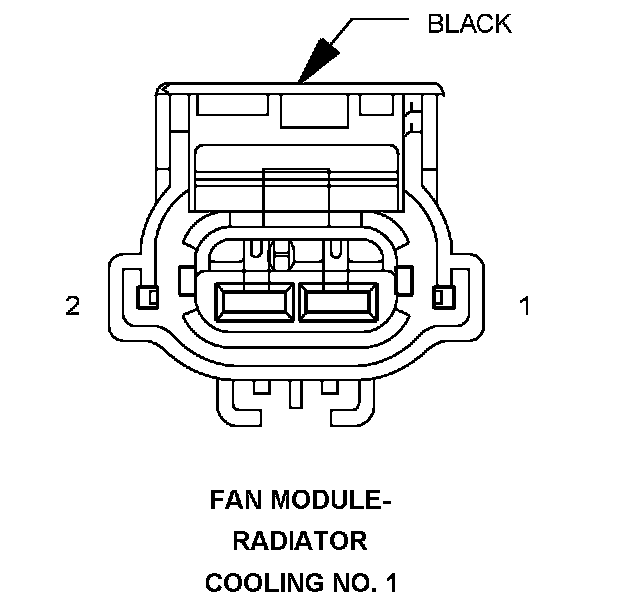

Component : FAN MODULE-RADIATOR COOLING NO. 1

Connector:
Name : FAN MODULE-RADIATOR COOLING NO. 1
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RADIATOR FAN RELAY OUTPUT N23 12DB/DG
2 GROUND Z823 12BK/DG

Component Location - 5
