Switch-Remote Radio-Left

Component ID: 413

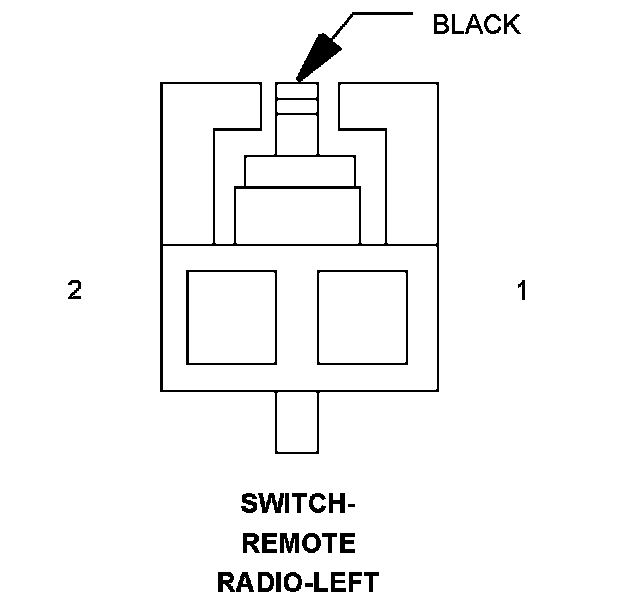

Component : SWITCH-REMOTE RADIO-LEFT

Connector:
Name : SWITCH-REMOTE RADIO-LEFT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY/WT
2 RADIO CONTROL MUX RETURN X920 20GY/OR

Component Location - 22
