Switch-Remote Radio-Right

Component ID: 414

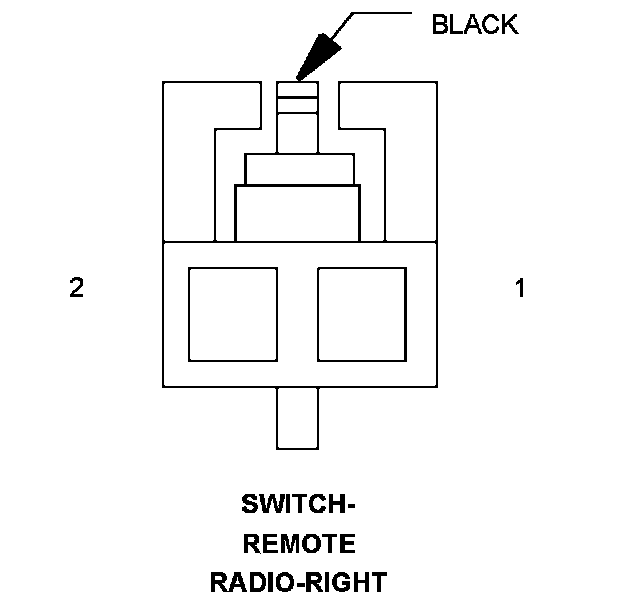

Component : SWITCH-REMOTE RADIO-RIGHT

Connector:
Name : SWITCH-REMOTE RADIO-RIGHT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY/WT
2 RADIO CONTROL MUX RETURN X920 20GY/OR

Component Location - 22
