Trunk / Liftgate Motor

Component ID: 17

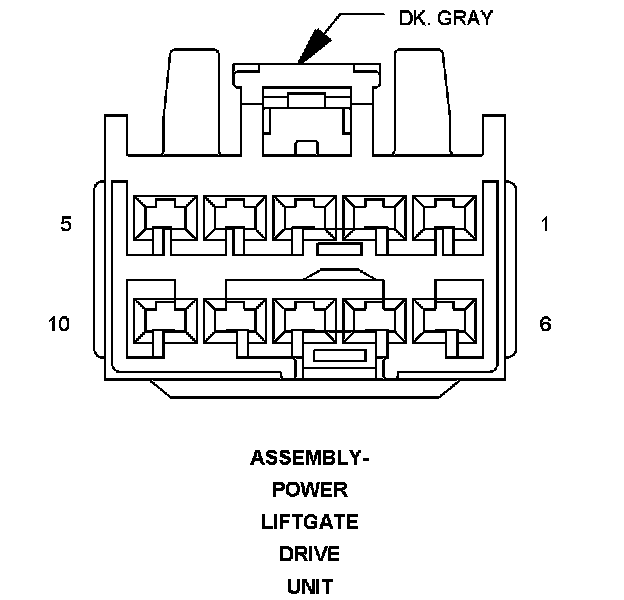

Component : ASSEMBLY-POWER LIFTGATE DRIVE UNIT

Connector:
Name : ASSEMBLY-POWER LIFTGATE DRIVE UNIT
Color : DK. GRAY
# of pins : 10




Pin Description Circuit
1 LIFTGATE OPEN DRIVER Q88 14TN/BR
2 POSITION SENSOR SUPPLY Q203 20OR/TN
3 LOGIC GROUND Q901 20OR/VT
4 LIFTGATE CLUTCH DRIVER Q201 18OR/LG
5 LOGIC GROUND Q901 20OR/VT
6 LIFTGATE CLOSE DRIVER Q89 14TN/OR
7 POSITION SENSOR SIGNAL 1 Q204 20OR/DG
8 POSITION SENSOR SIGNAL 2 Q205 20OR/DB
9 GROUND Z805 18BK/OR
10 LIFTGATE FULL OPEN SWITCH SENSE Q51 20OR

Component Location - 28
