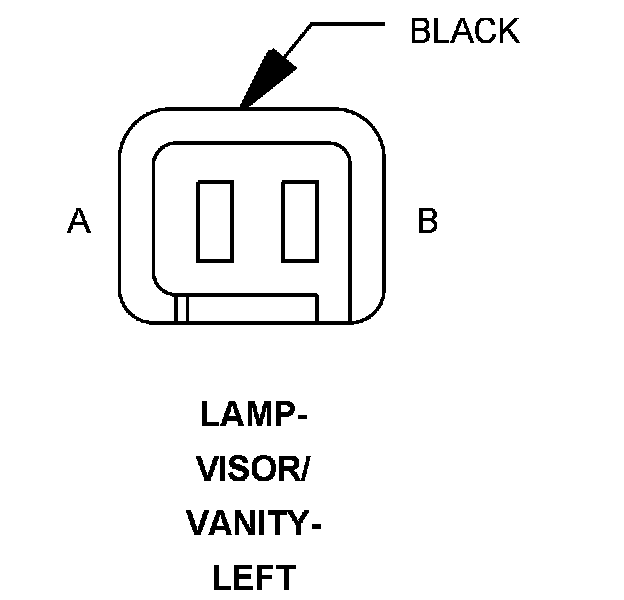

Lamp-Visor/Vanity-Left
Lamp-Visor/Vanity-Left
Component ID:
164
Component :
LAMP-VISOR/VANITY-LEFT
Connector:
Name :
LAMP-VISOR/VANITY-LEFT
Color :
BLACK
# of pins :
2
A
RAIL LAMPS DRIVER
M27 18YL/LB
B
GROUND
Z327 18BK/WT
Component Location - 44
