Voice Activation Module

Component ID: 185

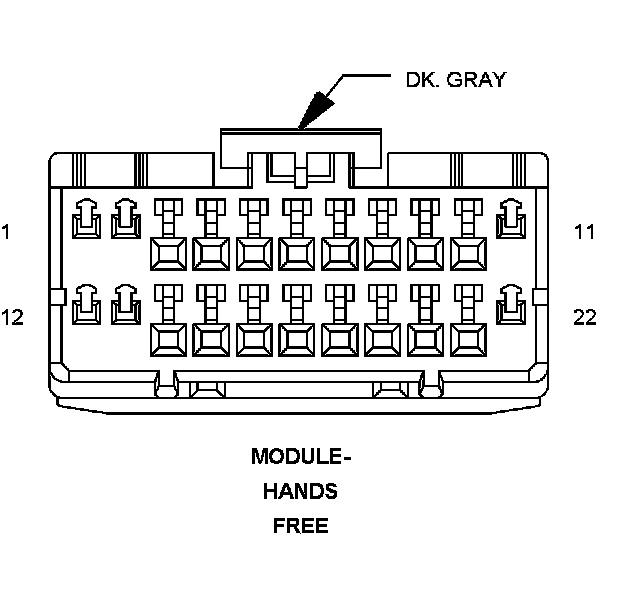

Component : MODULE-HANDS FREE

Connector:
Name : MODULE-HANDS FREE
Color : DK. GRAY
# of pins : 22




Pin Description Circuit
1 FUSED B(+) A114 20GY/RD
2 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
3 - -
4 - -
5 MICROPHONE 2 IN (+) X722 20DG/WT
6 - -
7 - -
8 RIGHT AUDIO OUTPUT X704 20DG/YL
9 LEFT AUDIO OUTPUT X703 20DG/OR
10 - -
11 - -
12 - -
13 - -
14 PCI BUS D25 20WT/VT
15 VOICE RECOGNITION/PHONE SWITCH SIGNAL X730 20GY/YL
16 MICROPHONE 1 IN (+) X712 20DG/LB
17 MICROPHONE IN (-) X792 20LB/DG
18 - -
19 - -
20 - -
21 SENSOR GROUND X835 20OR/GY
22 GROUND Z999 18BK

Component Location - 30
