Sensor-Wheel Speed-ABS-Left Front

Component ID: 388

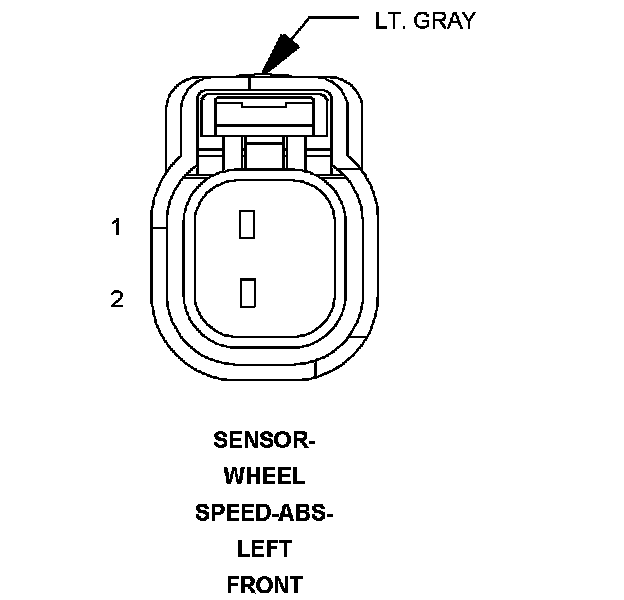

Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B9 18DG/LG
2 LEFT FRONT WHEEL SPEED SENSOR SIGNAL B8 18DG/TN

Component Location - 6

3.8L:

Component Location - 9

4.0L:
