Sensor-Wheel Speed-ABS-Left Rear

Component ID: 389
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

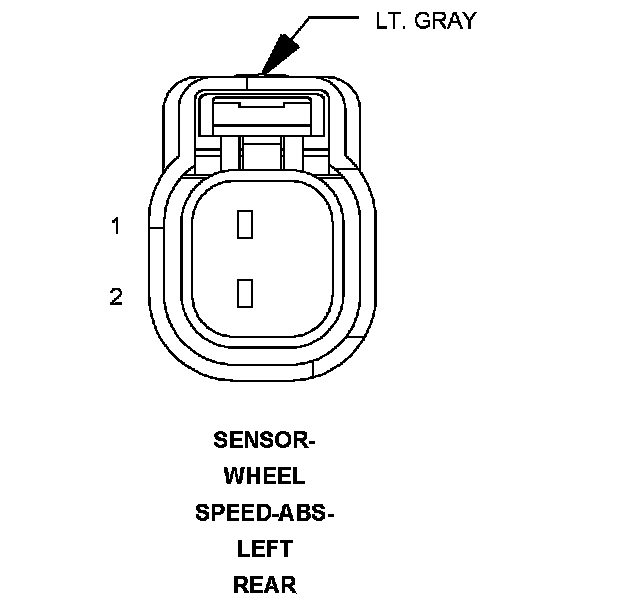

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 18DG/GY
2 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 18DG/YL

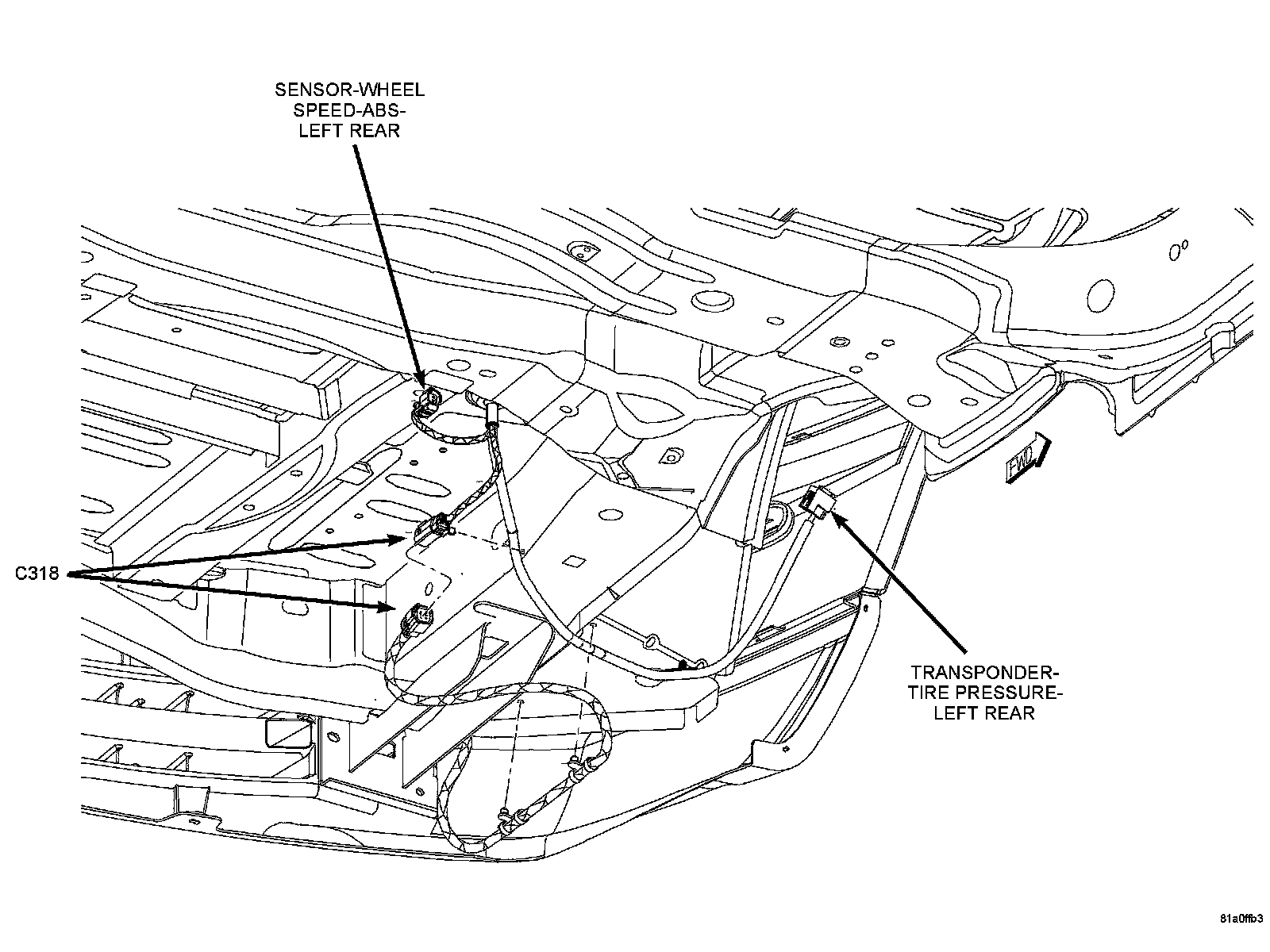

Component Location - 28




Component Location - 37
