Sensor-Wheel Speed-ABS-Right Front

Component ID: 390

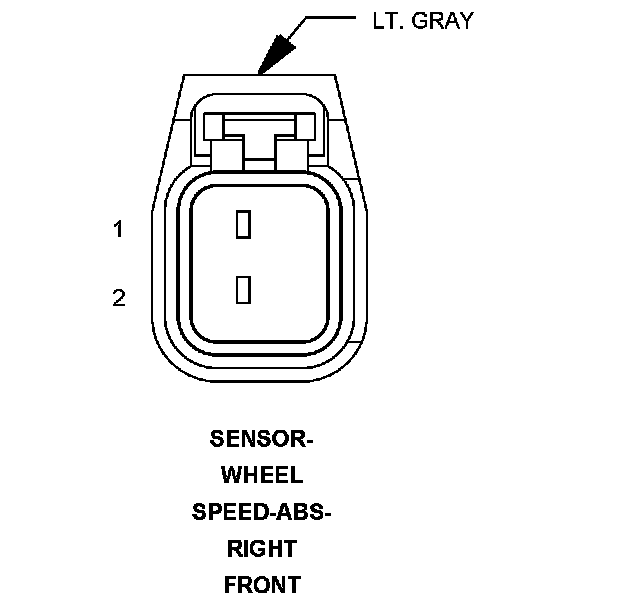

Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B7 18DG/VT
2 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 18DG/WT

Component Location - 3
