Sensor-Wheel Speed-ABS-Right Rear

Component ID: 391
Component : SENSOR-WHEEL SPEED-ABS-RIGHT REAR

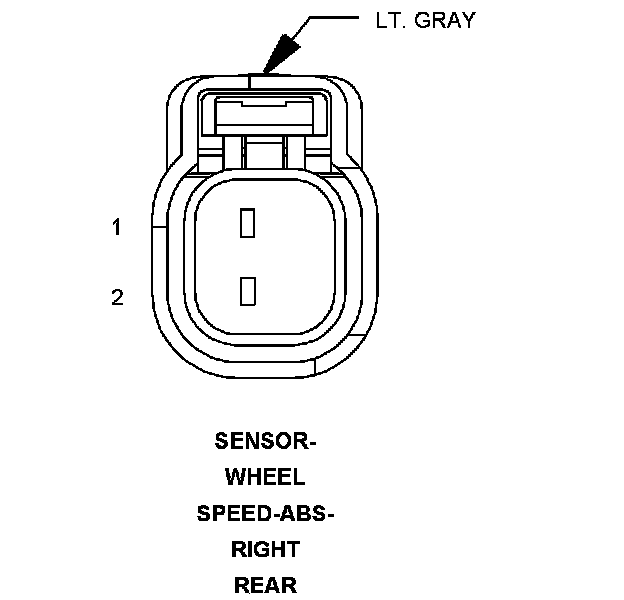

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT REAR
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 18DG/LB
2 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 18DG/DB

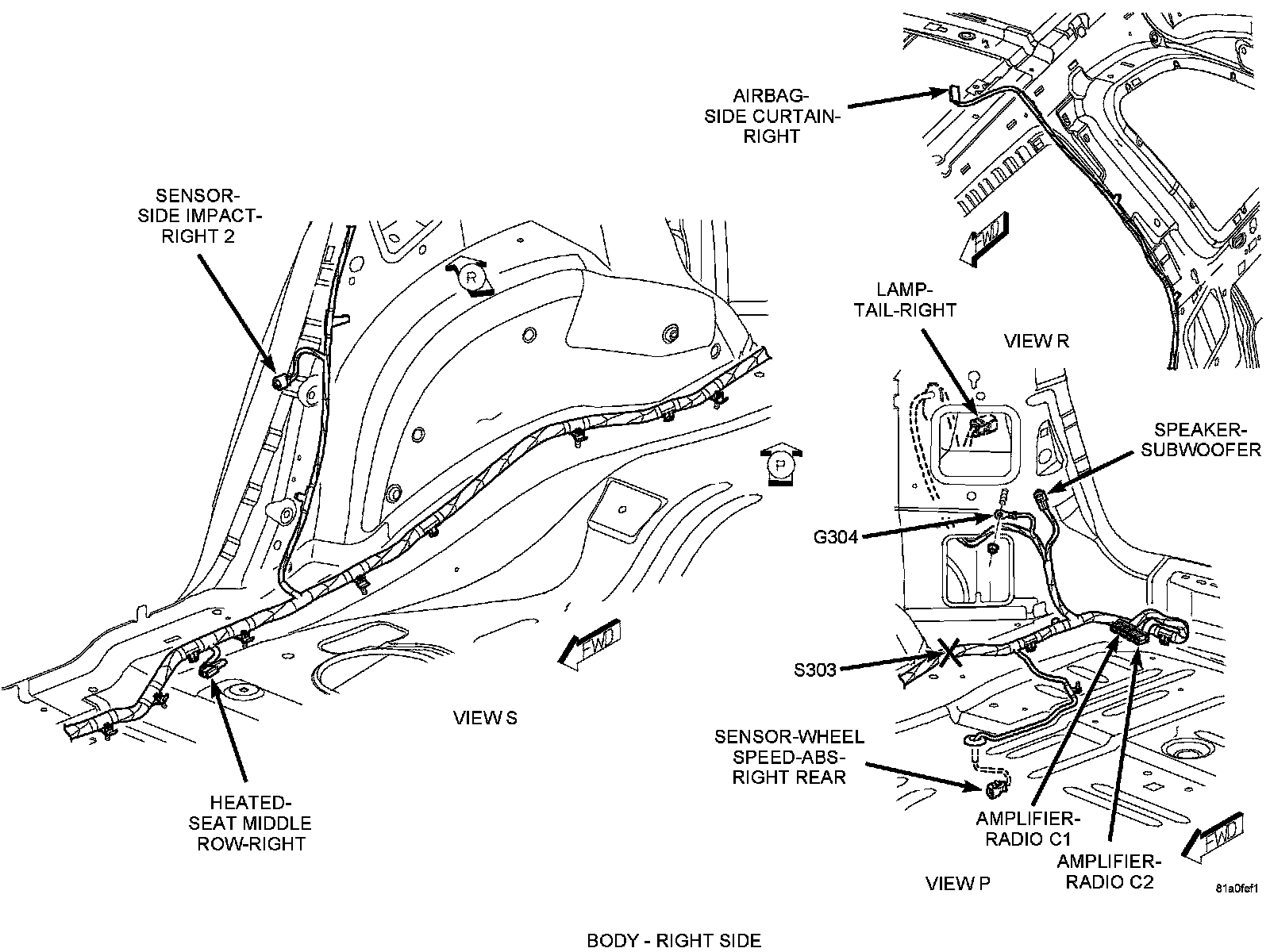

Component Location - 31

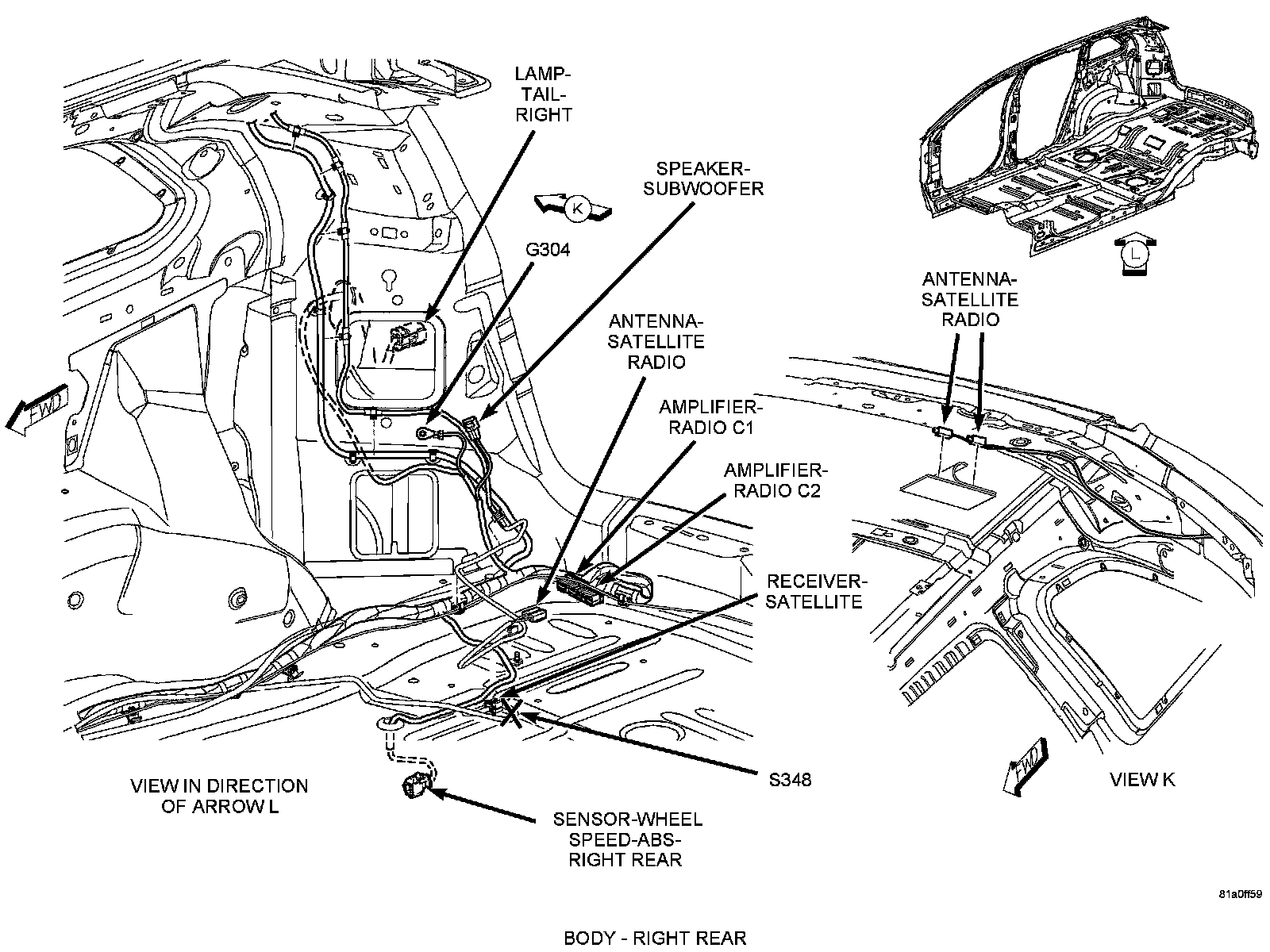

Component Location - 35
