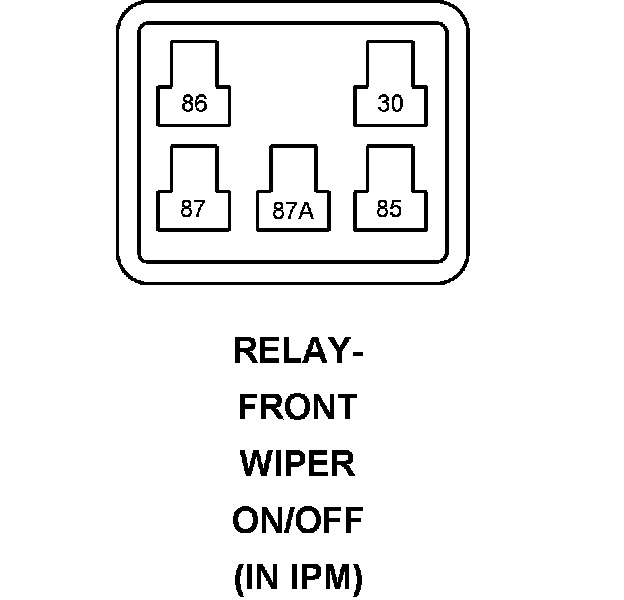

Relay-Front Wiper On/Off

Component ID: 231
Component : RELAY-FRONT WIPER ON/OFF

Connector:
Name : RELAY-FRONT WIPER ON/OFF
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 FRONT WIPER ON/OFF RELAY CONTROL INTERNAL
87 FUSED B(+) INTERNAL
87A GROUND INTERNAL
