Service Specifications

Description:

Cylinder Block:

Pistons:

Piston Pins:

Piston Rings:

Piston Ring Side Clearance:

Piston Ring Width:

Connecting Rods:

Crankshaft Main Bearing Journals:

Connecting Rod Journals:

Camshaft:

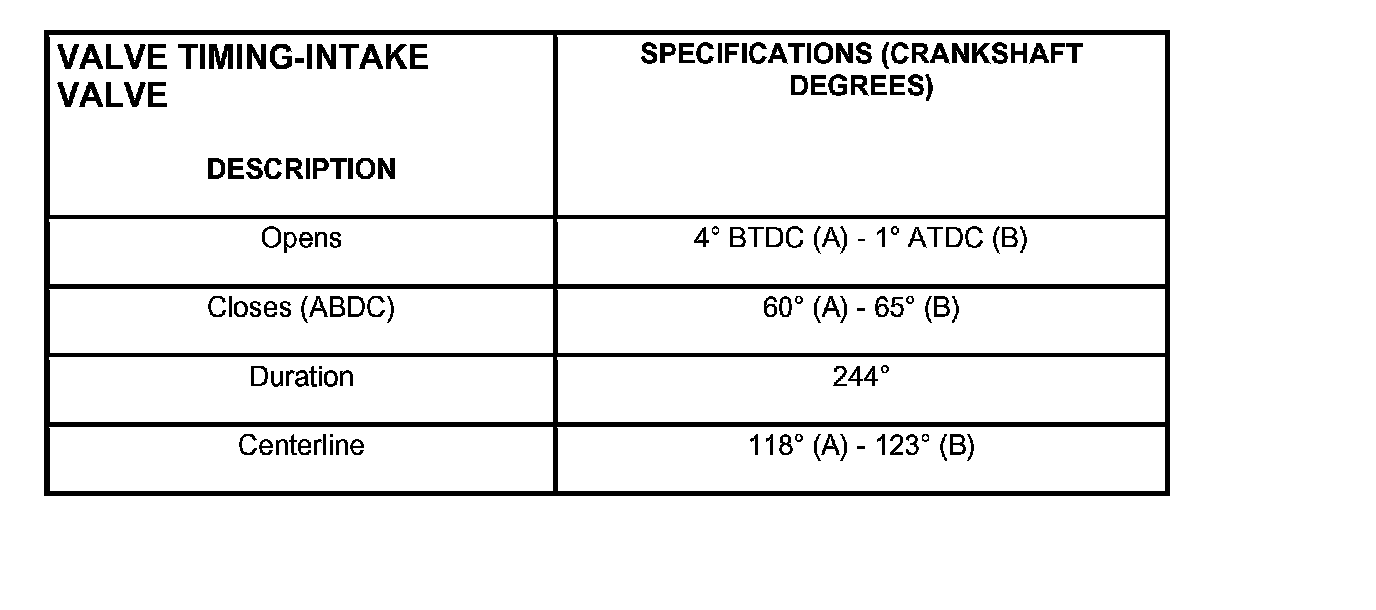

Valve Timing-Intake Valve:

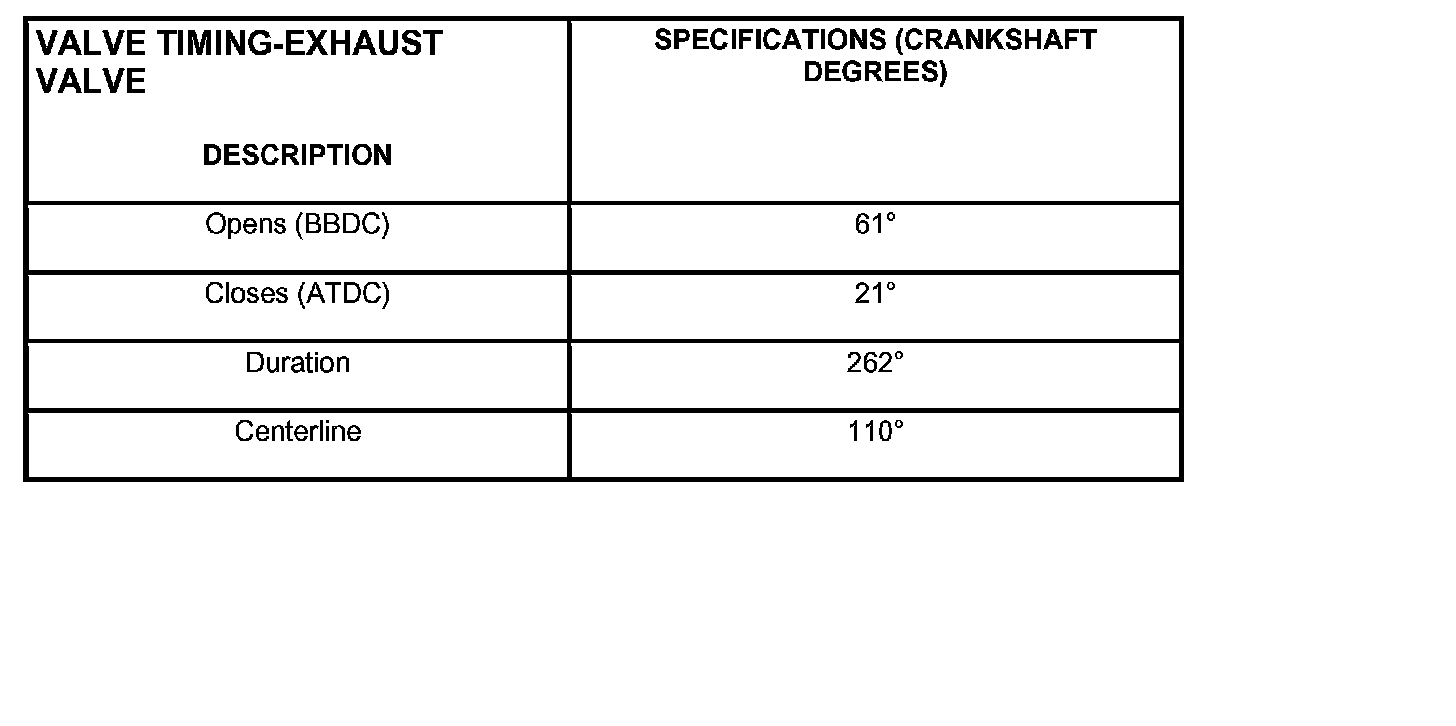

Valve Timing-exhaust Valve:

Cylinder Head:

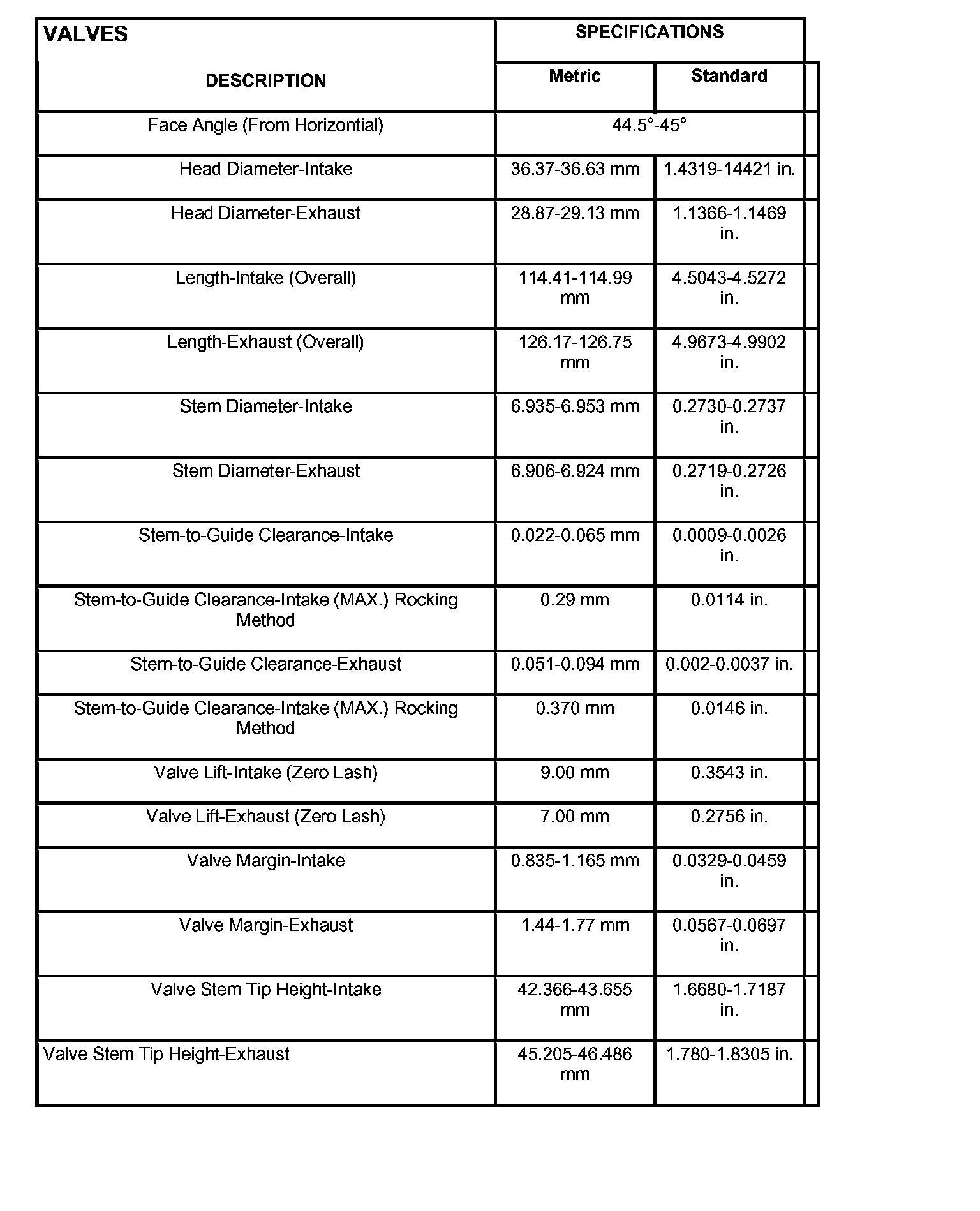

Valves:

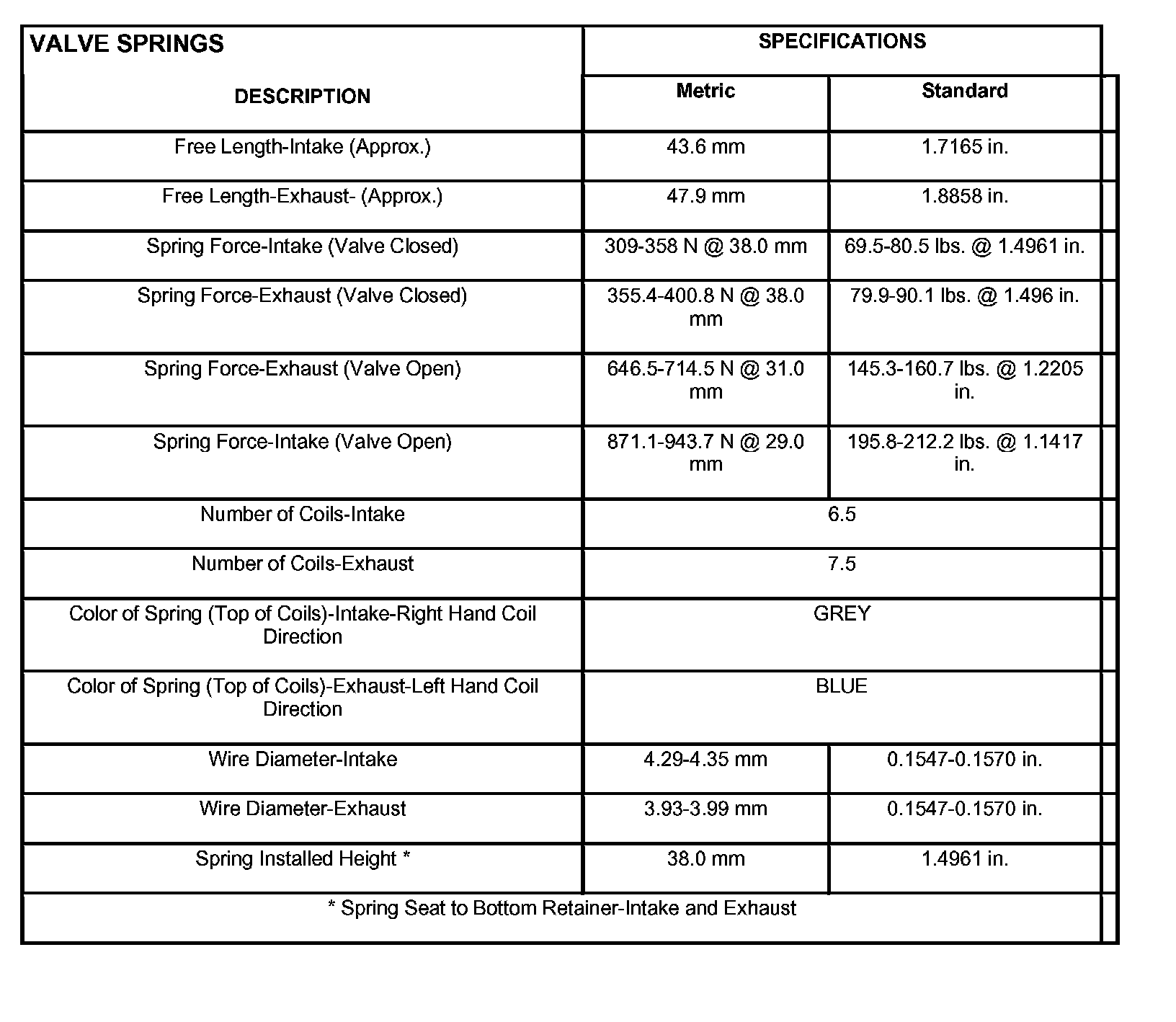

Valve Springs:

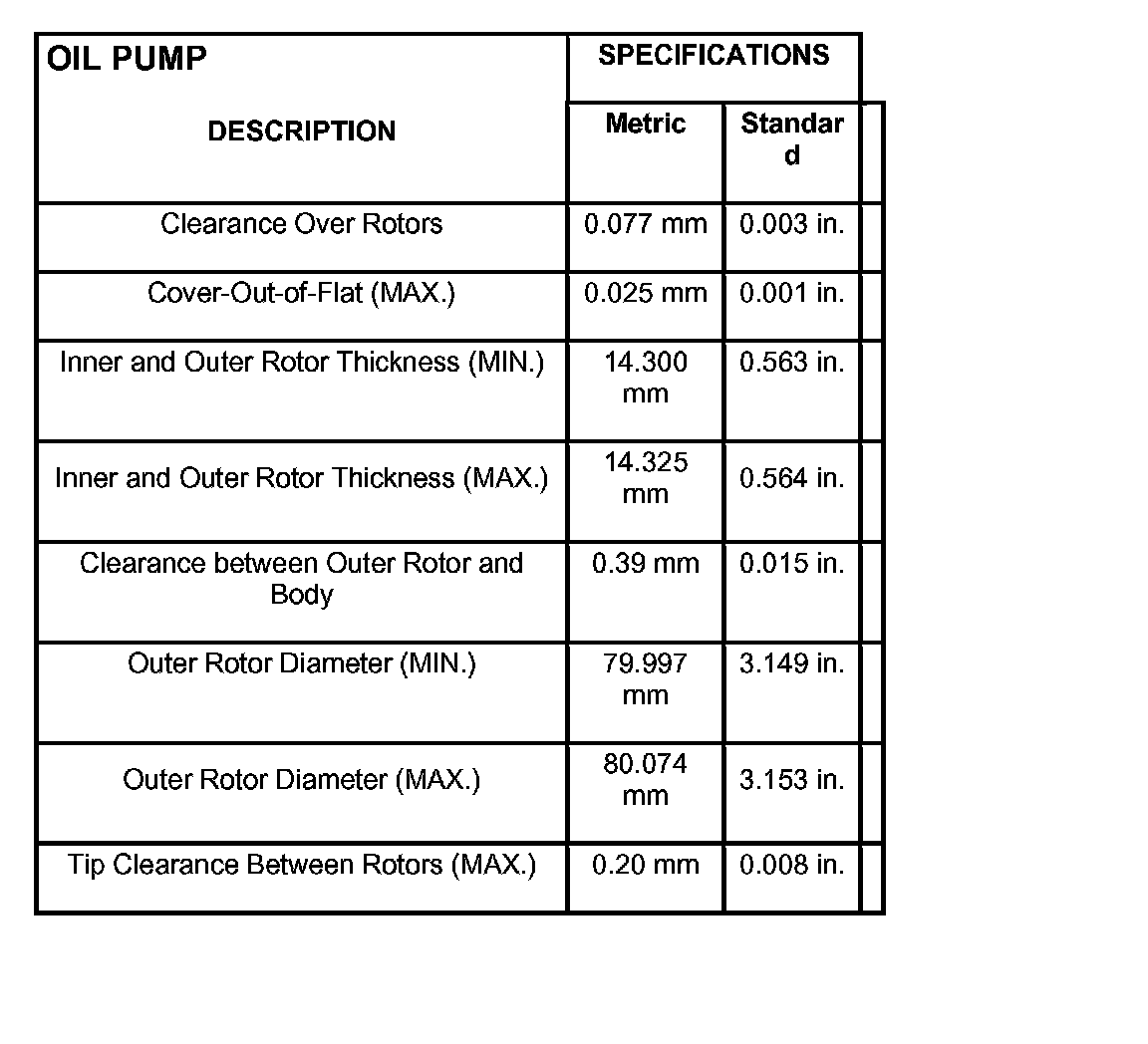

Oil Pump:

Oil Pressure:
