Engine Diagnosis - Mechanical

ENGINE MECHANICAL

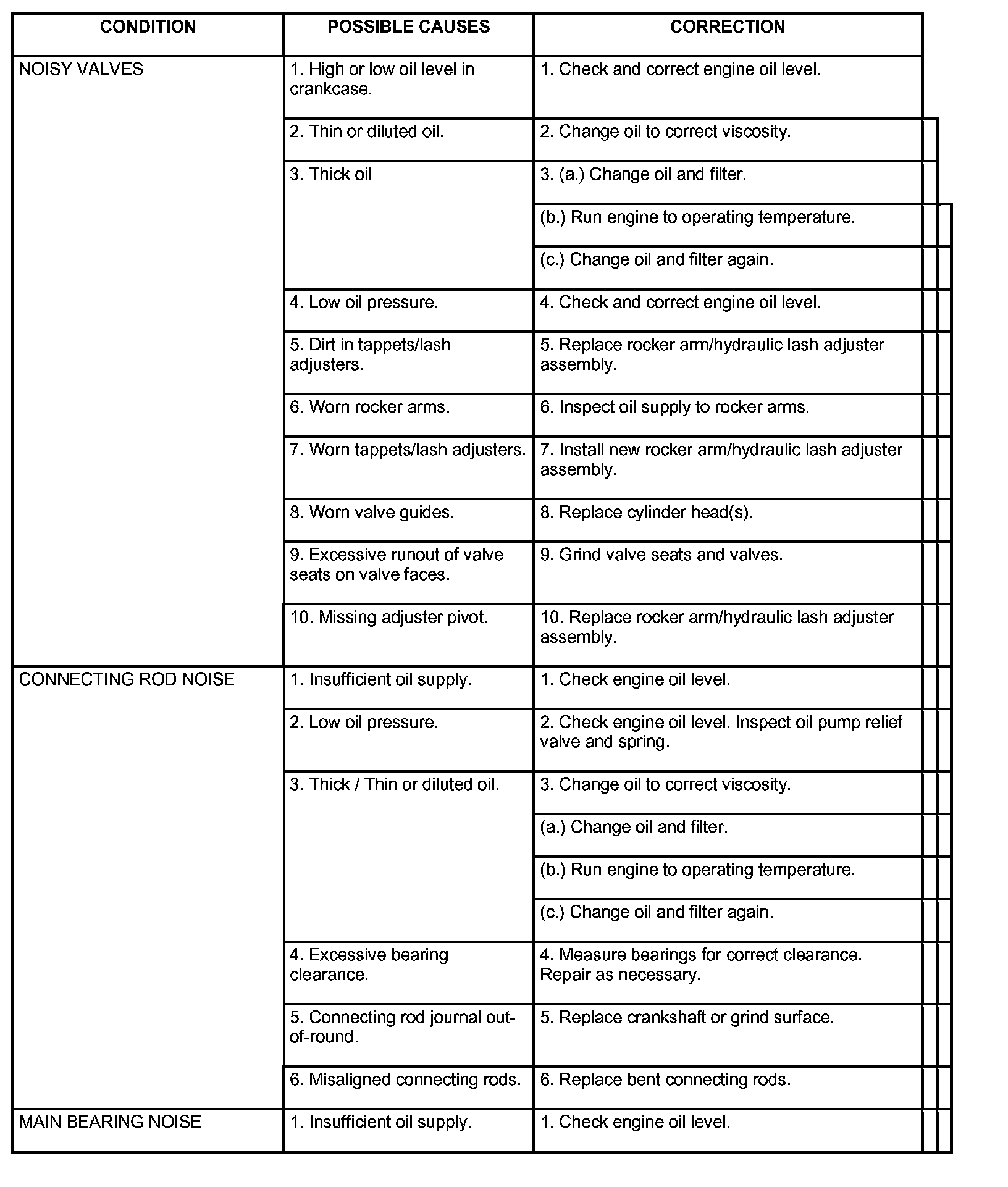

ENGINE MECHANICAL (Part 1):

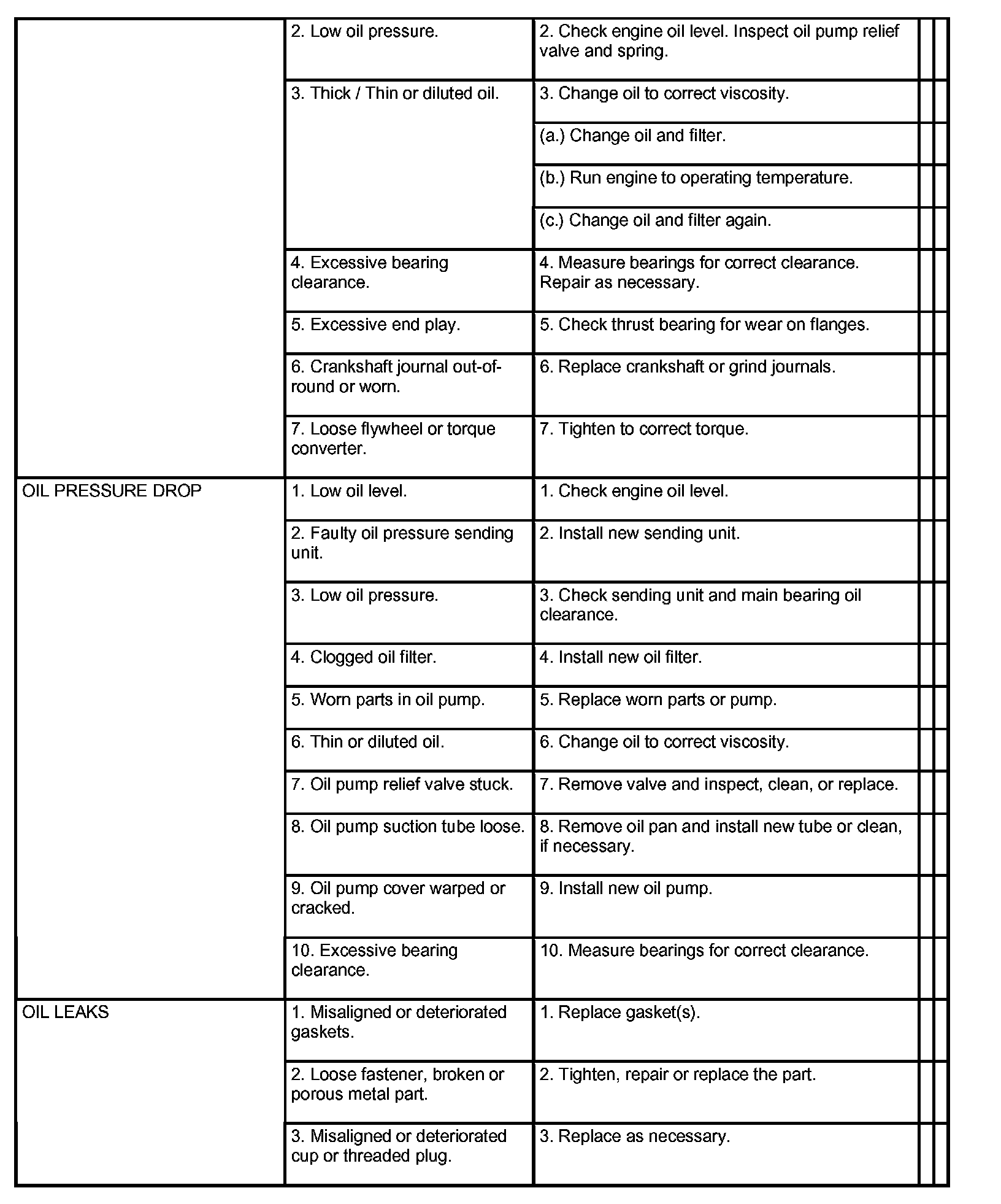

ENGINE MECHANICAL (Part 2):

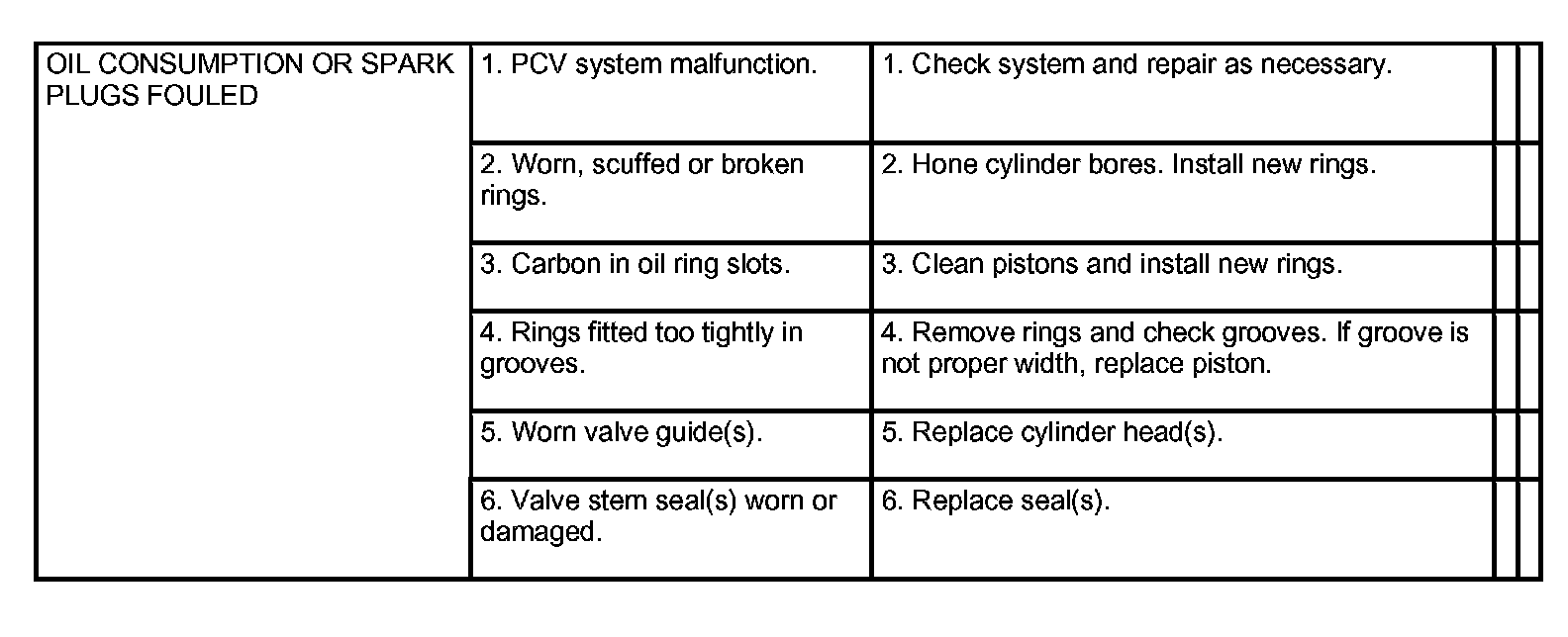

ENGINE MECHANICAL (Part 3):
