Instrument Cluster - Installation

INSTALLATION

CLUSTER WITH NAVIGATION




1. Place cluster straight into cluster opening in instrument panel. Be careful not to scratch the cluster face.

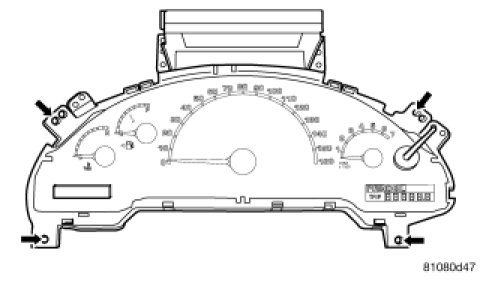

2. Install the four retaining screws to the cluster.

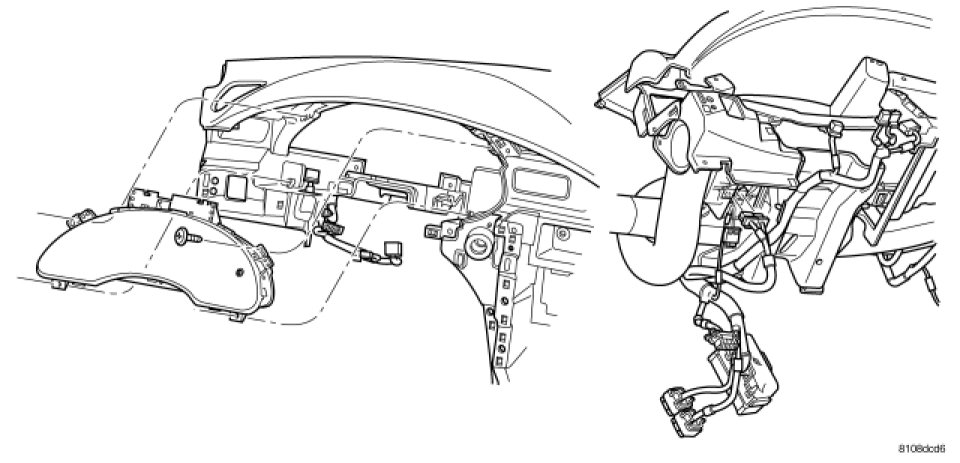

3. Connect the two electrical connectors (1) to the bottom of the cluster accessed from underneath instrument panel.

4. Raise the column (2) and install four nuts.

5. Install the cluster bezel.

WARNING: Do not connect the battery negative cable. Failure to do so could result in personal injury or death.

CLUSTER WITHOUT NAVIGATION




6. Place cluster straight into cluster opening in instrument panel. Be careful not to scratch the cluster face.

7. Install the four retaining screws to the cluster.




8. Connect the two electrical connectors (1) to the bottom of the cluster accessed from underneath instrument panel.

9. Install the right multi-function switch and two retaining screws.

10. Install the left multi-function switch and two retaining screws.

11. Install the column shrouds.

12. Install the cluster bezel.

WARNING: Do not connect the battery negative cable. Failure to do so could result in personal injury or death.
