Lamp-Courtesy-Driver

Component ID: 142

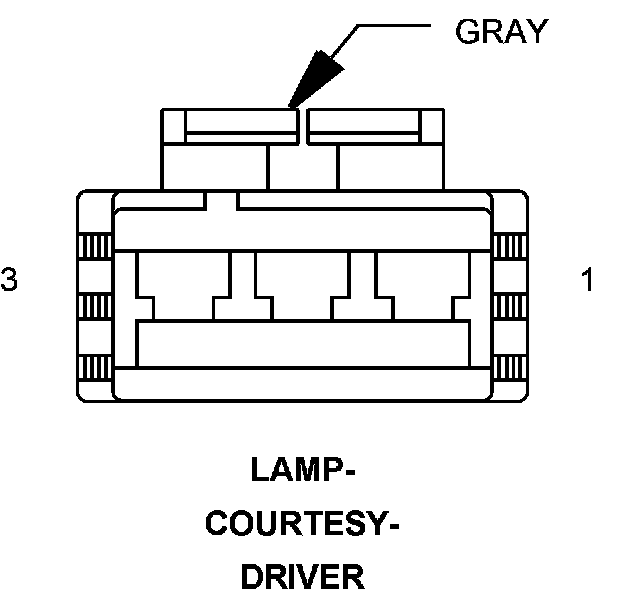

Component : LAMP-COURTESY-DRIVER

Connector:
Name : LAMP-COURTESY-DRIVER
Color : GRAY
# of pins : 3




Pin Description Circuit
1 GROUND Z321 20BK/BR
2 - -
3 LEFT DOOR COURTESY LAMP DRIVER M43 20OR/LB

Component Location - 41
