Lamp-Headlamp-Left

Component ID: 148
Component : LAMP-HEADLAMP-LEFT

Connector:

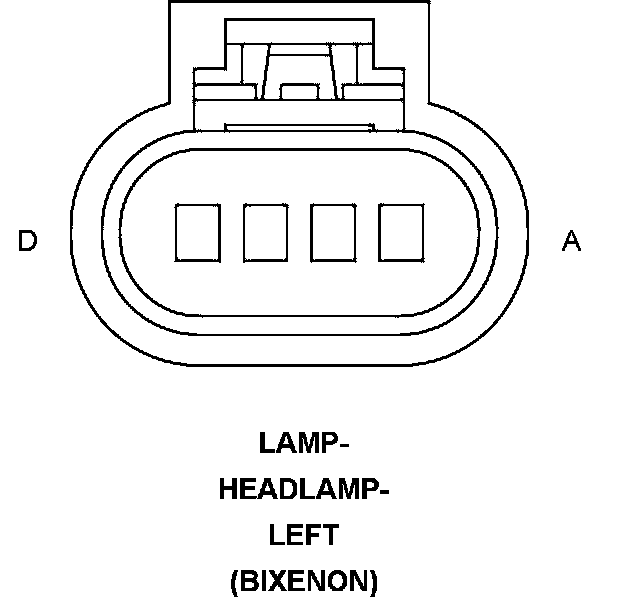

Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 4
Qualifier : (BIXENON)




A LEFT LOW BEAM LAMP DRIVER L43 18WT/DB
B LEFT HIGH BEAM LAMP DRIVER L33 18WT/DG
C GROUND Z343 18BK/LG
D GROUND Z345 18BK/LB

Component Location - 5




Component Location - 6

3.8L:

Connector:

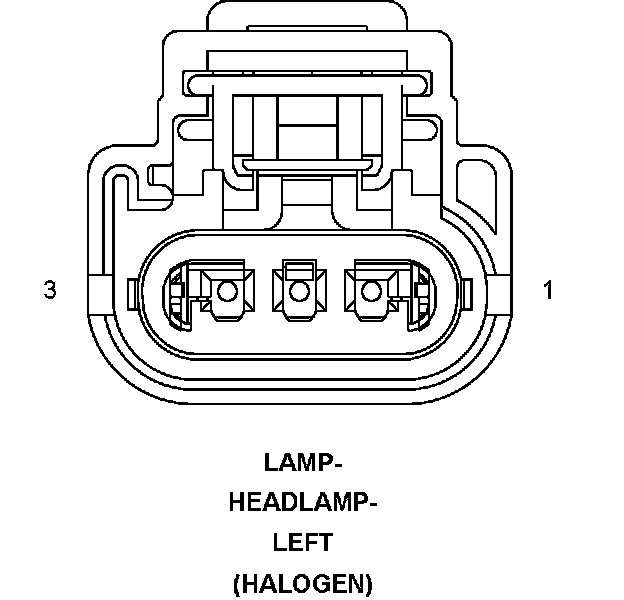

Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 3
Qualifier : (HALOGEN)




Pin Description Circuit
1 LEFT LOW BEAM LAMP DRIVER L43 18WT/DB
2 GROUND Z343 18BK/LG
3 LEFT HIGH BEAM LAMP DRIVER L33 18WT/DG

Component Location - 5




Component Location - 6

3.8L:
