Lamp-Side Marker-Left Front

Component ID: 160
Component : LAMP-SIDE MARKER-LEFT FRONT

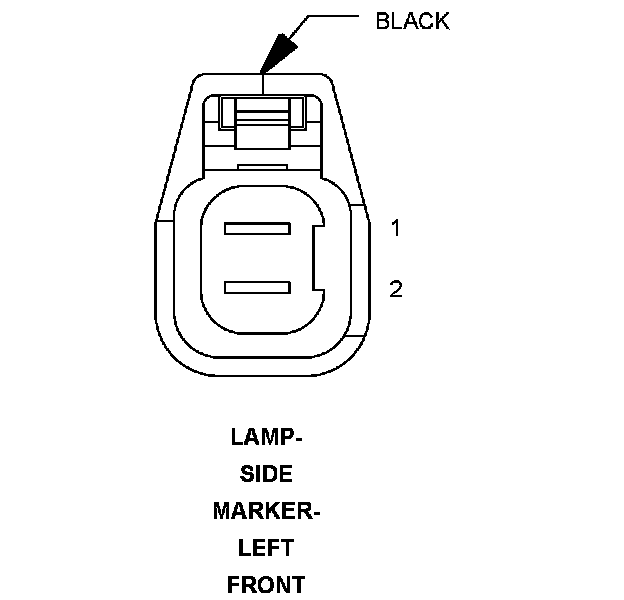

Connector:
Name : LAMP-SIDE MARKER-LEFT FRONT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 LEFT FRONT SIDE MARKER LAMP DRIVER L77 20WT/BR
2 GROUND Z377 20BK/BR

Component Location - 5
