Lamp-Tail-Left

Component ID: 162
Component : LAMP-TAIL-LEFT

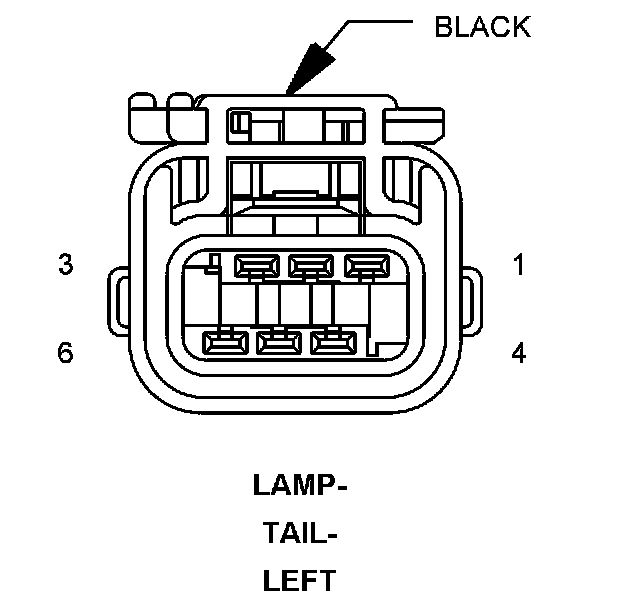

Connector:
Name : LAMP-TAIL-LEFT
Color : BLACK
# of pins : 6




Pin Description Circuit
1 LEFT TAIL LAMP DRIVER L71 20WT/GY
2 BACKUP LAMP DRIVER L1 18WT/LG
3 LEFT TAIL LAMP DRIVER L71 20WT/GY
4 GROUND Z363 18BK/DG
5 BRAKE LAMP SWITCH OUTPUT L51 18WT/DG
6 LEFT REAR TURN SIGNAL LAMP DRIVER L63 18DG/WT

Component Location - 28
