Removal

REMOVAL

1. Release fuel pressure.

2. Disconnect negative battery cable.

3. Remove fuel tank,

4. Vacuum area before removing fuel pump module lock ring.

5. Disconnect vapor line and electrical connector.




6. Remove Fuel Pump Module lock ring.

NOTE: Use a brass punch to remove the 1/4 turn lock ring. Make contact only at the points shown.




7. Remove fuel pump module top.

8. Drain Fuel Tank using an approved gasoline draining station.

9. Disconnect electrical connector.

10. The wire connector to the passenger side level sensor needs to be disconnected before removing the reservoir from the tank.

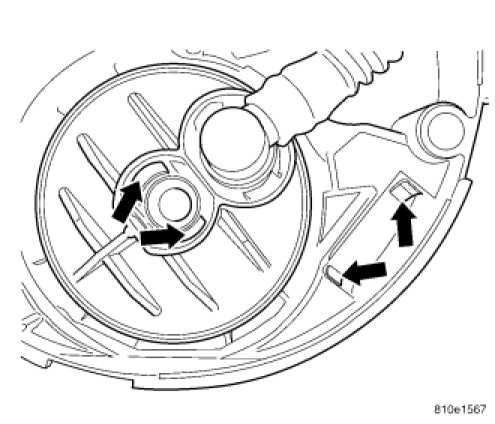

11. Tab location in fuel pump module for return line and fuel supply line.




12. Remove return line from pump module. Use a small screwdriver to pry tab back and tip hose to one side. Pry tab on other side back to release hose.

CAUTION: Care should be taken to not crack/break the locking tabs or supply line fitting.

13. Remove fuel line from top of the pump module. Use a small screwdriver to pry tab back and tip hose to one side. Pry the tab on other side back to release hose.

14. Tip fuel pump module on its side to remove fuel from reservoir.

15. Remove fuel pump module.
