40/41TE Automatic Transaxle






SPECIFICATIONS - 41TE TRANSAXLE

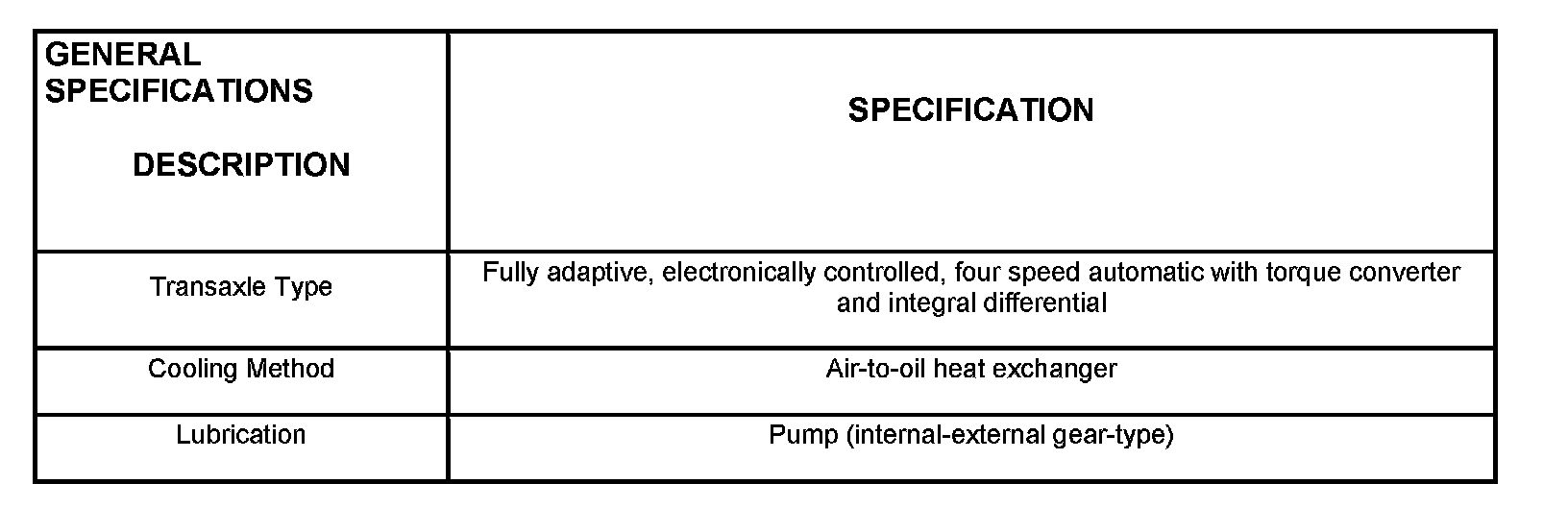

General Specifications:

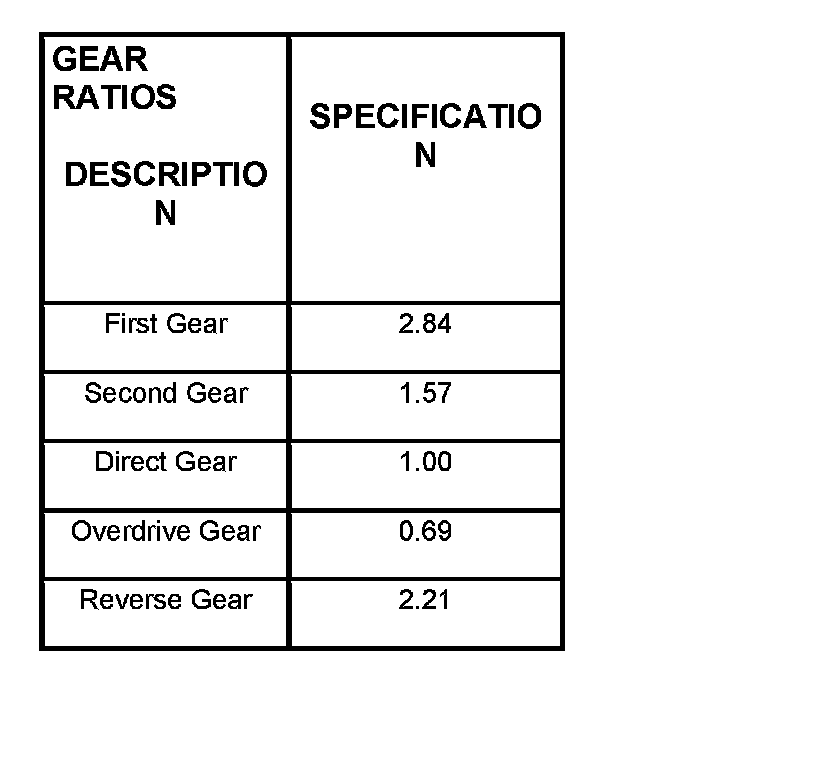

Gear Ratios:

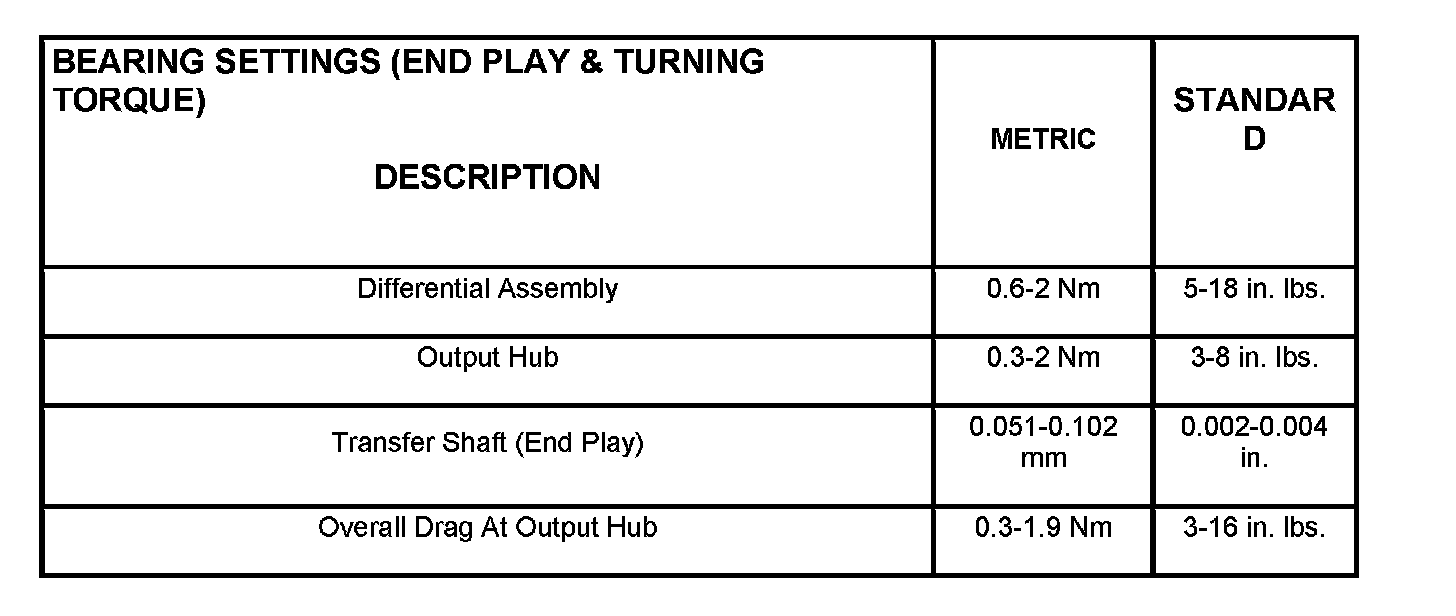

Bearing Settings:






Clutch Clearances:

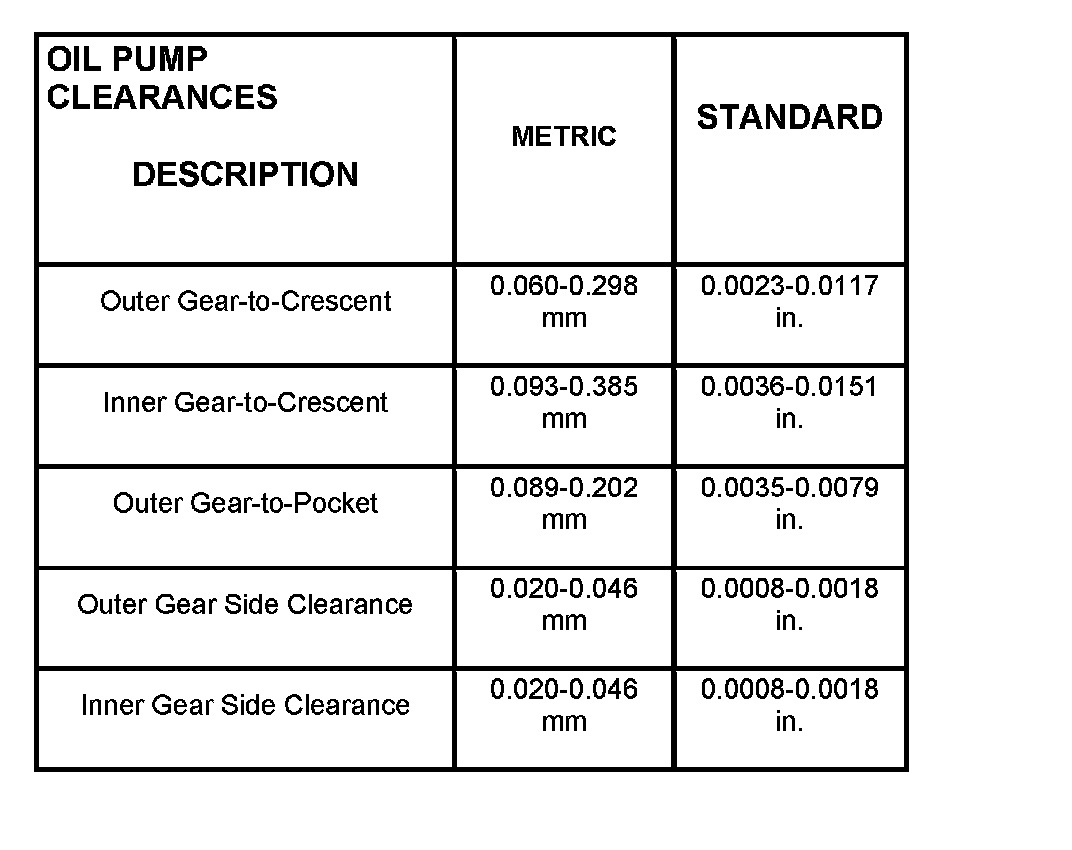

Oil Pump Clearances:

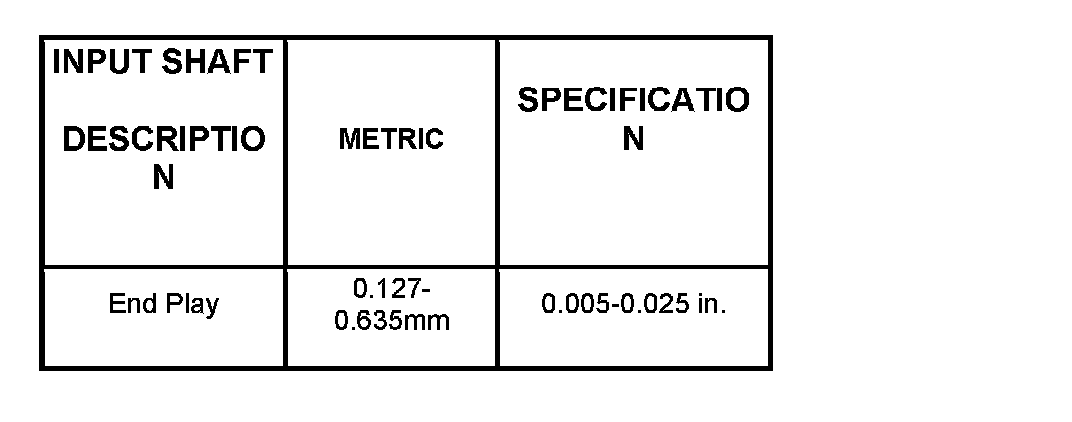

Input Shaft:

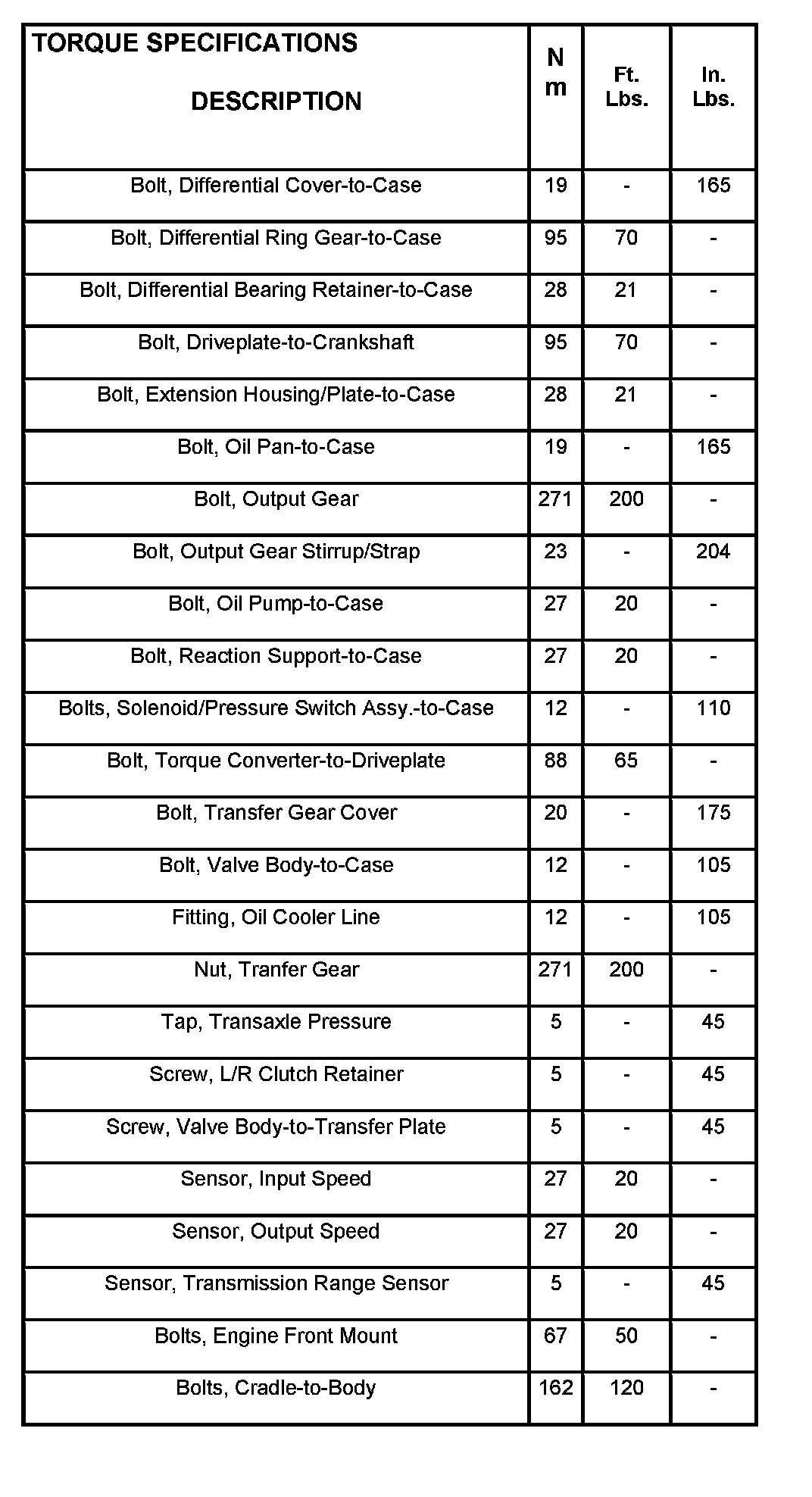

Torque Specifications (Part 1):

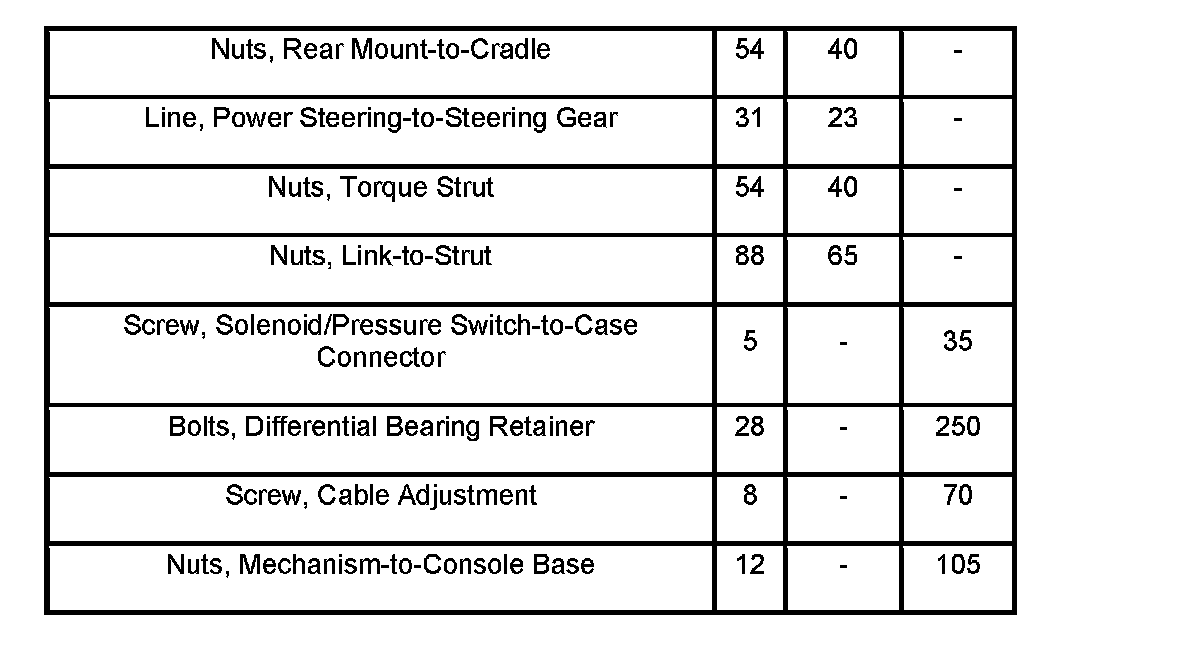

Torque Specifications (Part 2):
