62TE Automatic Transaxle






SPECIFICATIONS

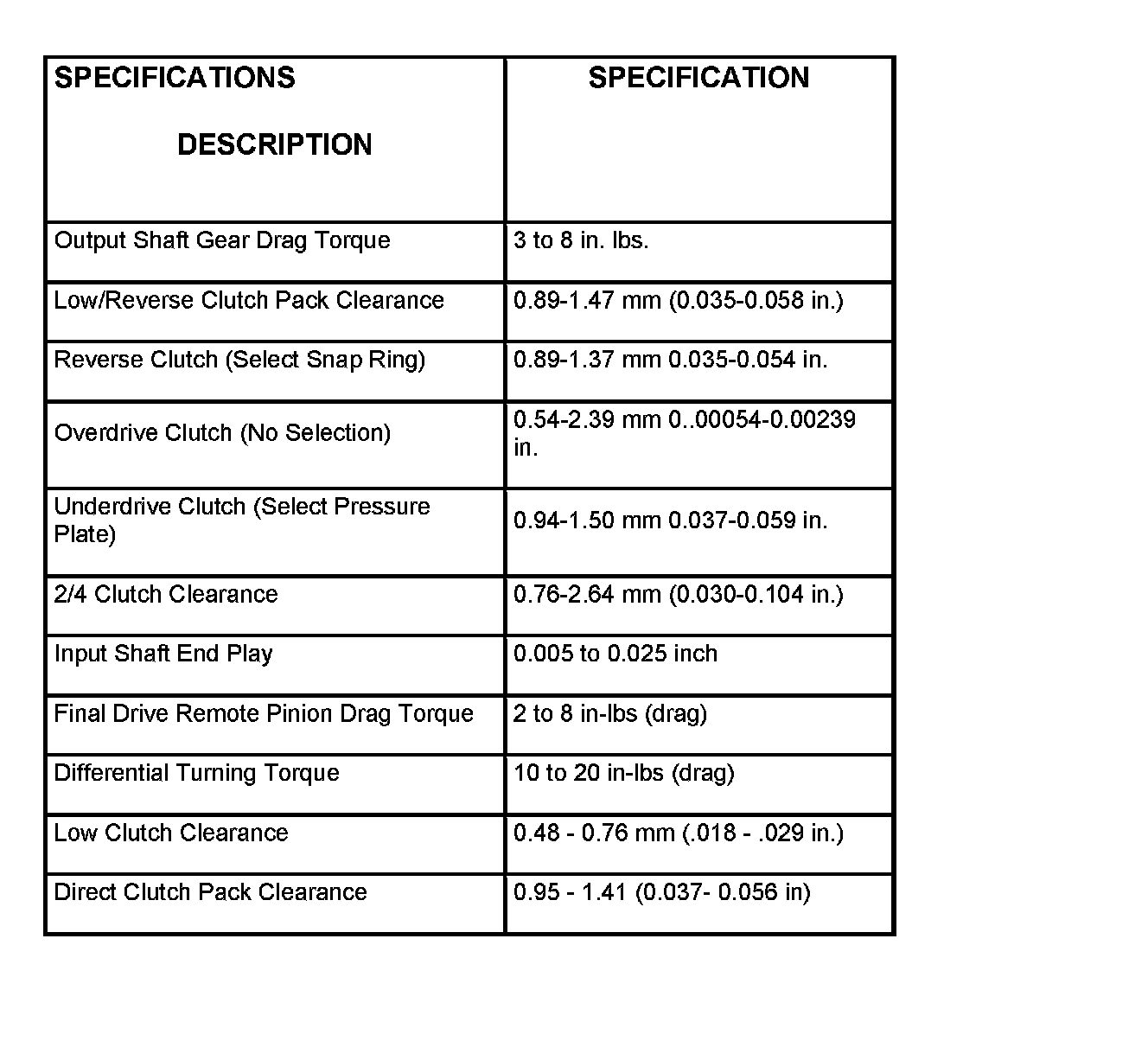

Specifications:

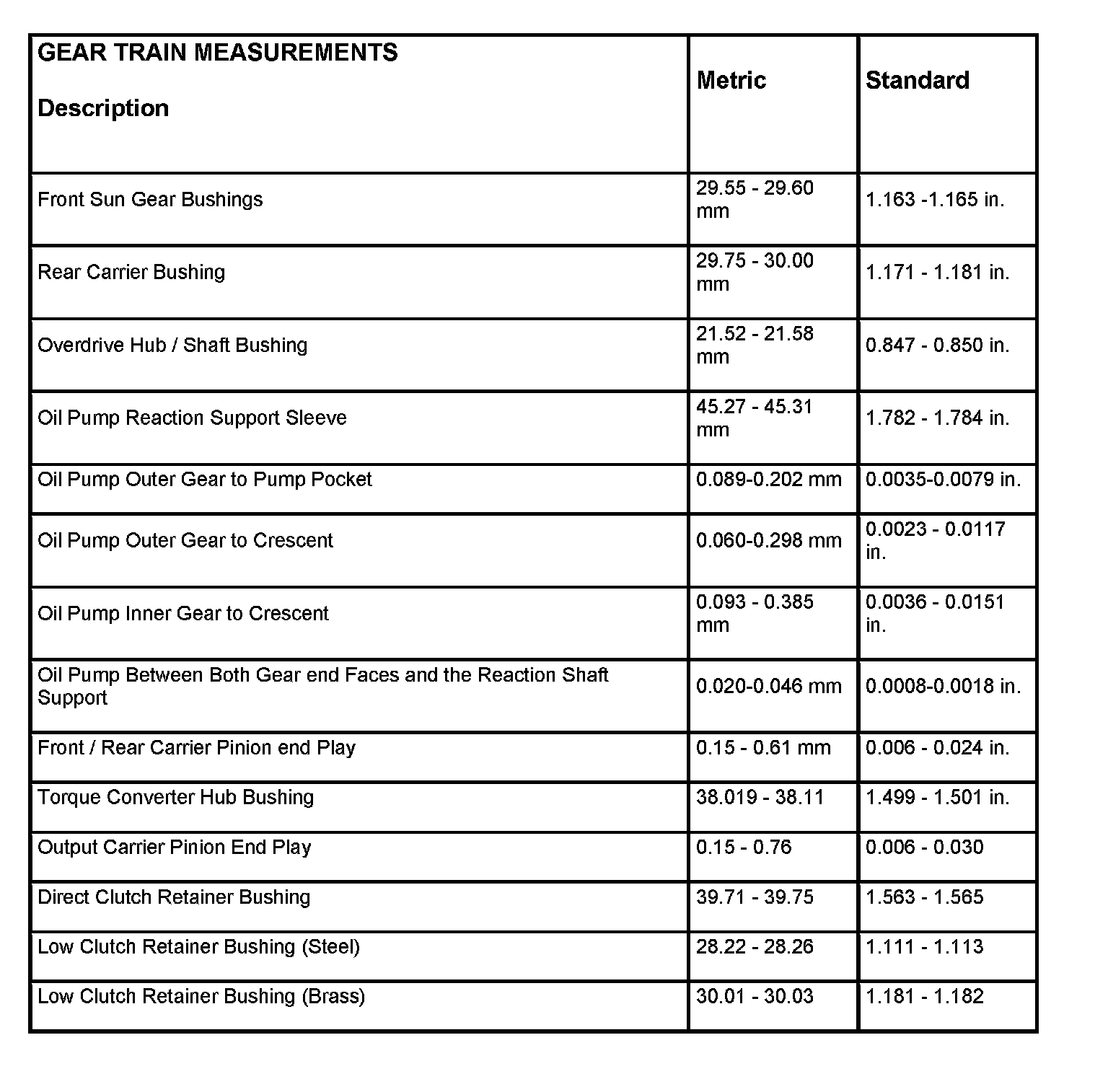

Gear Train Measurements:

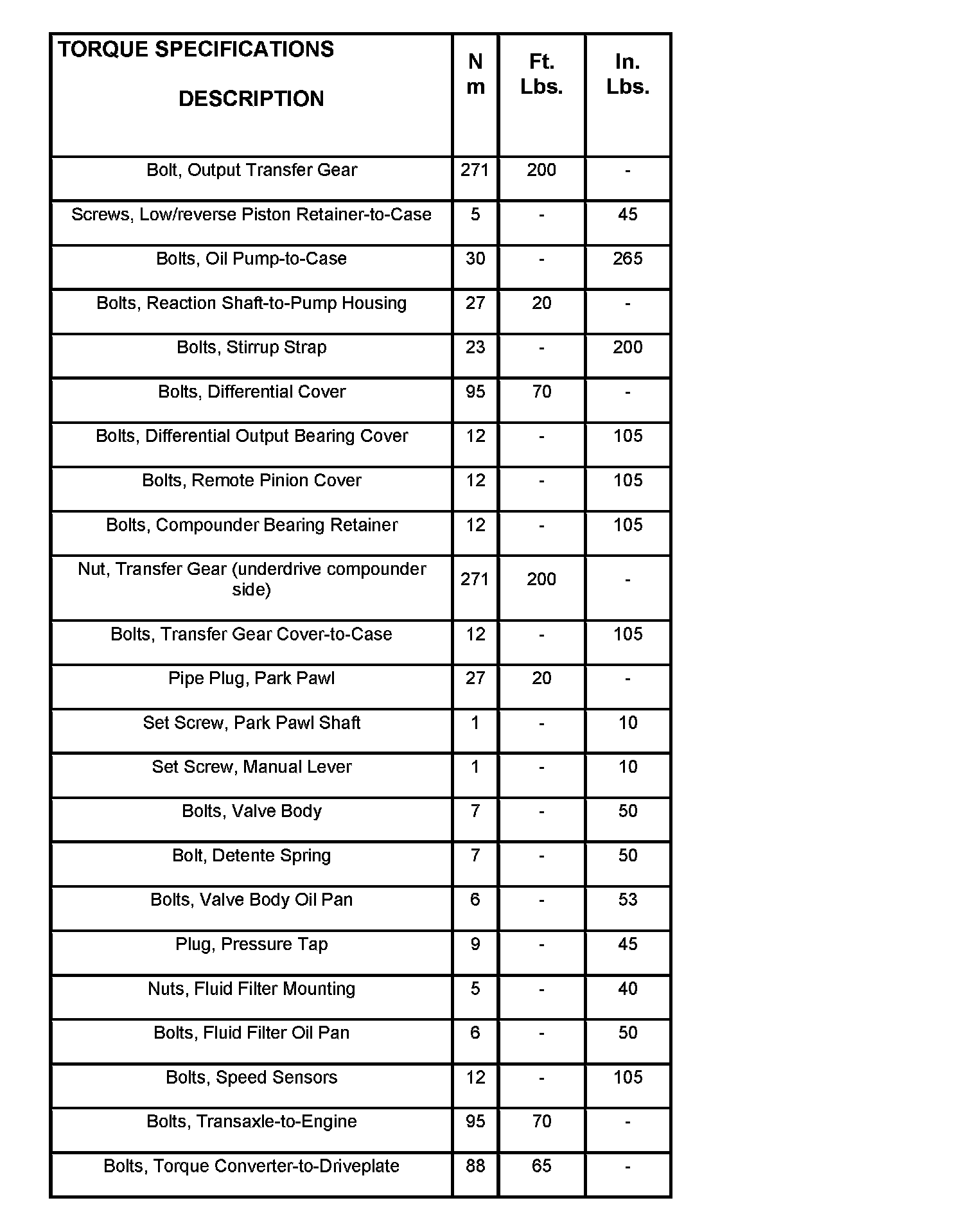

Torque Specifications (Part 1):




Torque Specifications (Part 2):
