Piston Ring, Engine

Piston Rings:





Piston Rings

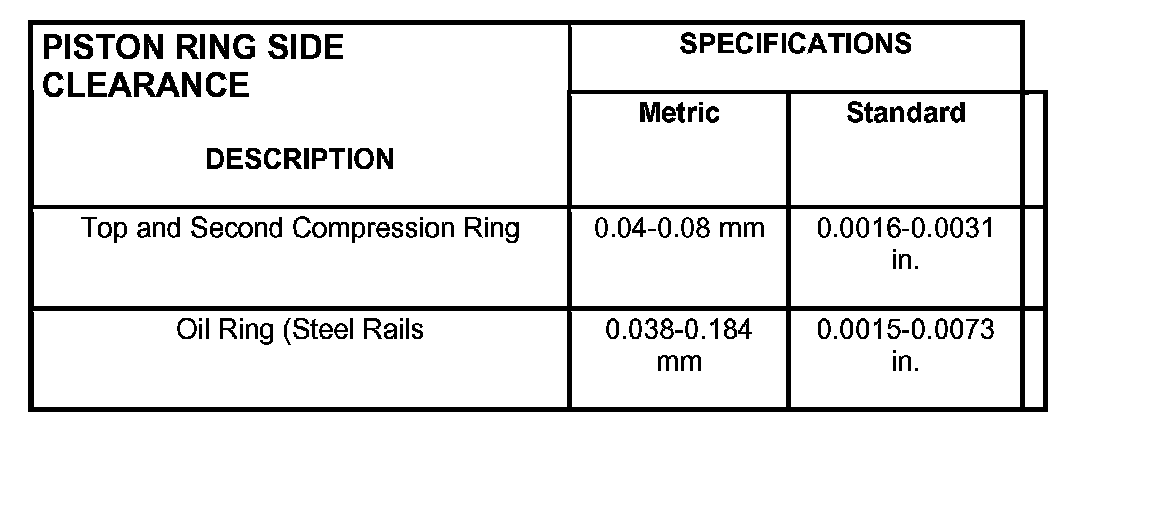

Piston Ring Side Clearance:





Piston Ring Side Clearance

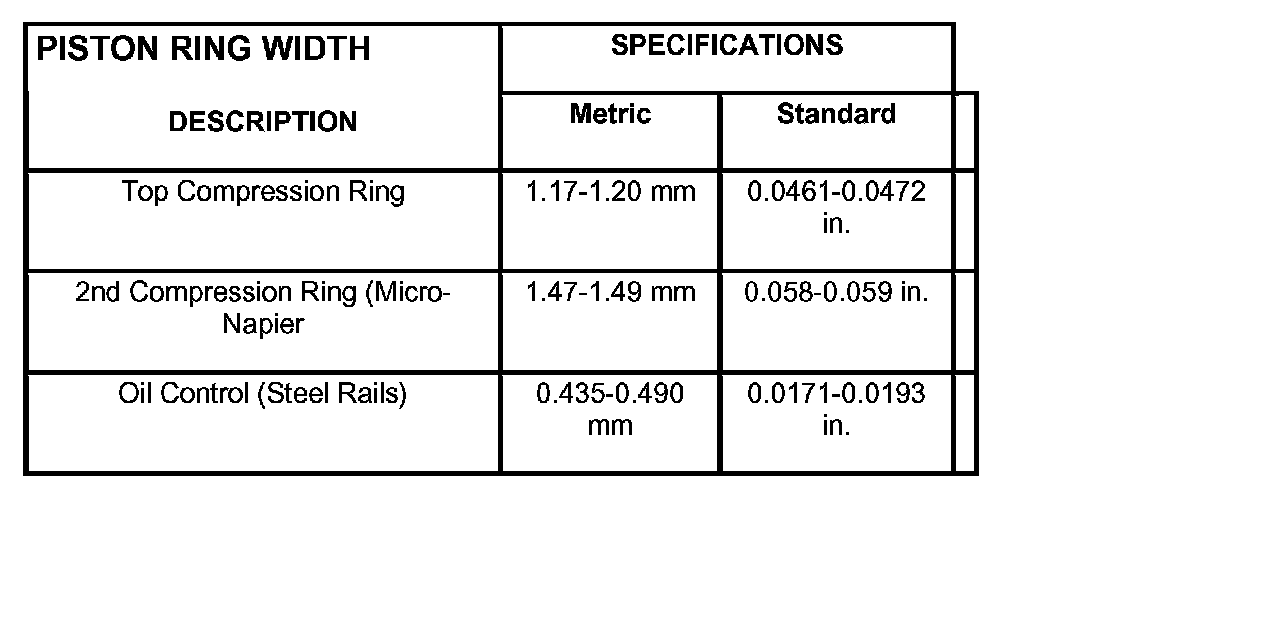

Piston Ring Width:





Piston Ring Width
