System Specifications






STEERING FASTENER TORQUE

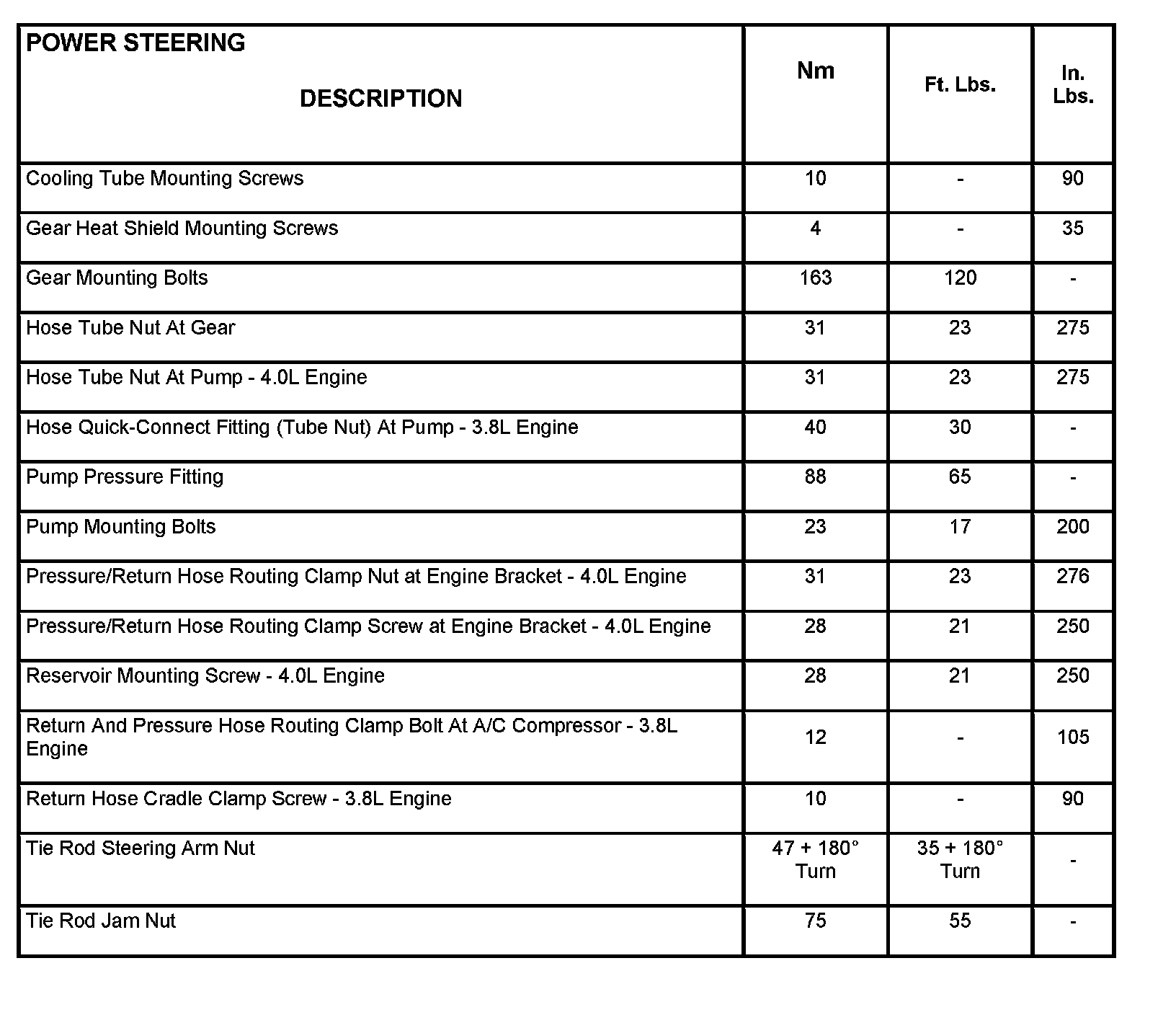

Power Steering Specifications:






Steering Column Specifications:
