Battery: Diagrams

Component ID: 23
Component : BATTERY

Connector:

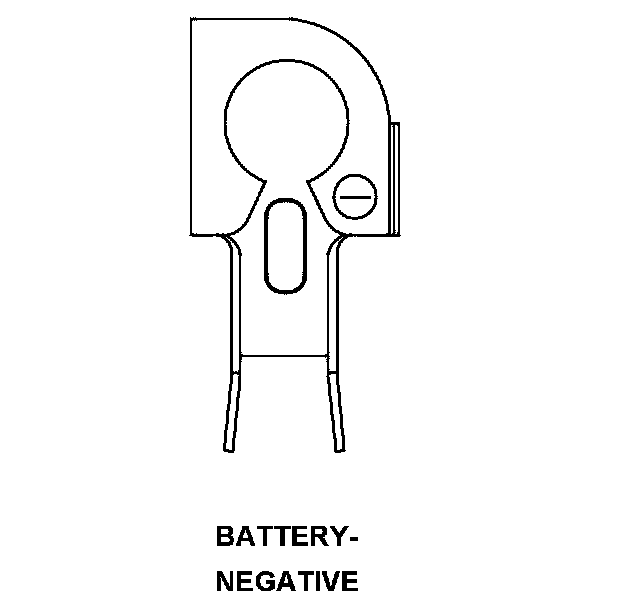

Name : BATTERY-NEGATIVE
Color :
# of pins : 1




Pin Description Circuit
1 GROUND Z1 4BK
Pin Description Circuit
1 GROUND Z2 8BK/WT
Pin Description Circuit
1 GROUND Z3 10BK

Component Location - 1




Component Location - 7






Connector:

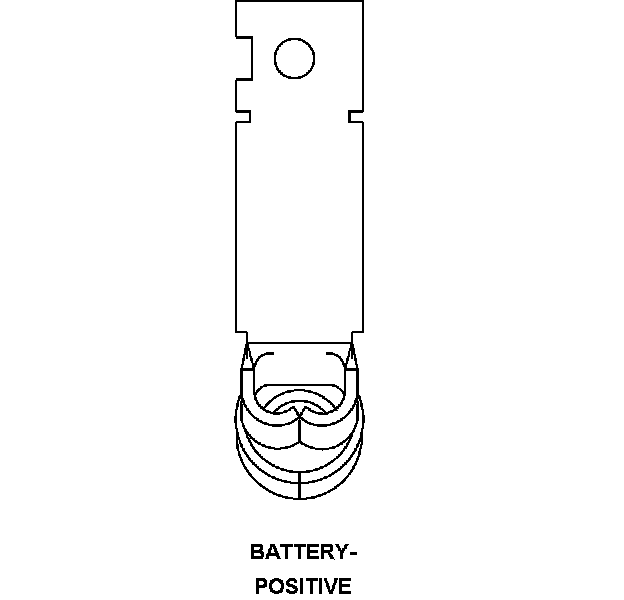

Name : BATTERY-POSITIVE
Color :
# of pins : 1




Pin Description Circuit
1 FUSED B(+) A1 4RD
Pin Description Circuit
1 FUSED B(+) A8 4RD

Component Location - 1




Component Location - 7
