Airbag-Left Seat Squib

Component ID: 6
Component : AIRBAG-LEFT SEAT SQUIB

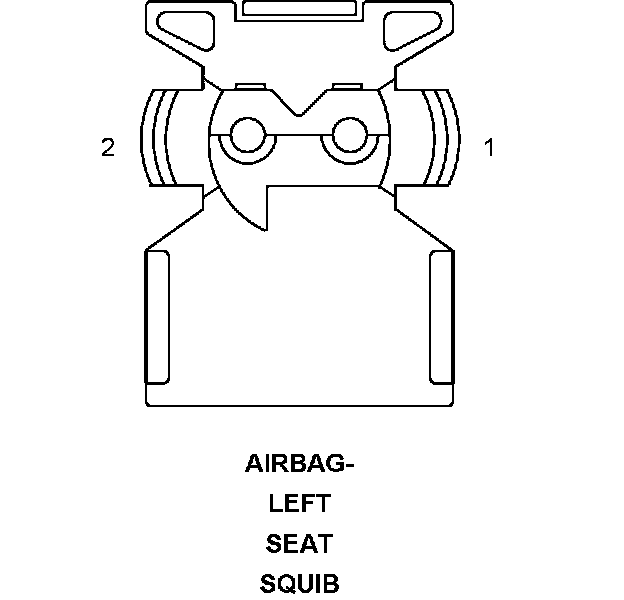

Connector:
Name : AIRBAG-LEFT SEAT SQUIB
Color :
# of pins : 2




Pin Description Circuit
1 LEFT SEAT SQUIB 1 LINE 2 R5 18LB/VT
2 LEFT SEAT SQUIB 1 LINE 1 R7 18LG/GY
