C201

Component ID: 43
Component : C201

Connector:
Name : C201
Color :
# of pins : 4
Qualifier : (EXCEPT HANDS FREE)
Gender : FEMALE




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F202 18BK/PK
2 - -
3 BACKUP LAMP SWITCH OUTPUT L1 20BK/LG
4 GROUND Z910 18BK

Component Location - 36

Fig. 36:

Component Location - 40

Fig. 40:

Component Location - 42

Fig. 42:

Component Location - 47






Connector:
Name : C201
Color :
# of pins : 4

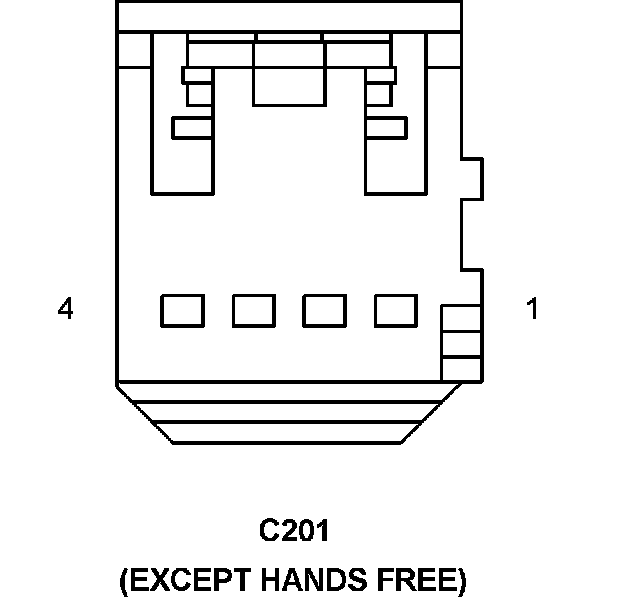

Qualifier : (EXCEPT HANDS FREE)
Gender : MALE




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT
2 - -
3 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
4 GROUND Z910 18BK

Component Location - 36

Fig. 36:

Component Location - 40

Fig. 40:

Component Location - 42

Fig. 42:

Component Location - 47






Connector:
Name : C201
Color :
# of pins : 12

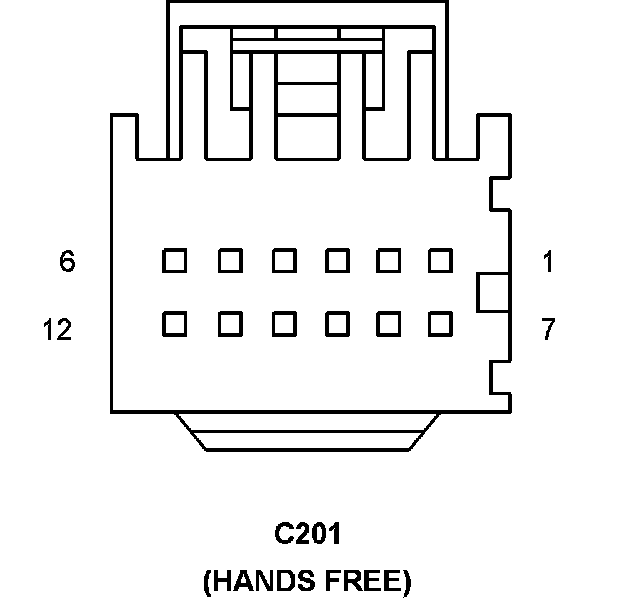

Qualifier : (HANDS FREE)
Gender : FEMALE




Pin Description Circuit
1 MICROPHONE 1 IN (+) X712 20BK/DG
2 MICROPHONE 2 IN (+) X722 20BK/LB
3 MICROPHONE IN (-) X792 20BK/TN
4 SENSOR GROUND X835 20BK/GY
5 - -
6 GROUND Z910 20BK
7 - -
8 - -
9 MICROPHONE FEED X793 20BK/YL
10 - -
11 BACKUP LAMP SWITCH OUTPUT L1 20BK/LG
12 IGNITION SWITCH OUTPUT (RUN-START) F202 18BK/PK

Component Location - 36

Fig. 36:

Component Location - 40

Fig. 40:

Component Location - 42

Fig. 42:

Component Location - 47






Connector:
Name : C201
Color :
# of pins : 12

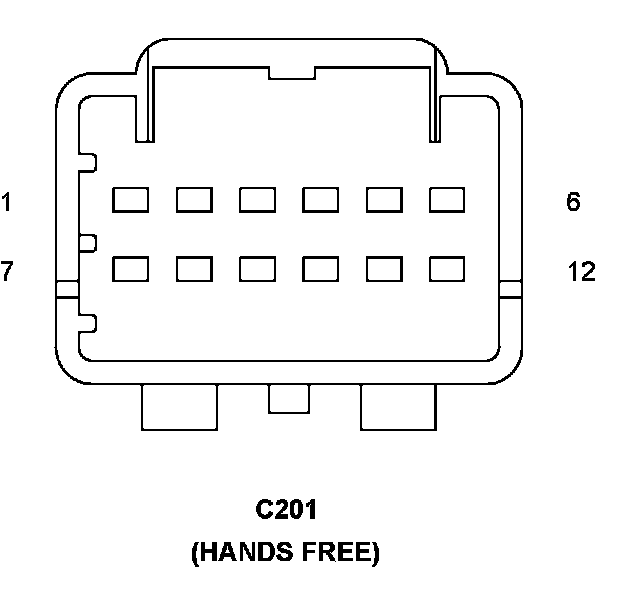

Qualifier : (HANDS FREE)
Gender : MALE




Pin Description Circuit
1 MICROPHONE 1 IN (+) X712 20DG/LB
2 MICROPHONE 2 IN (+) X722 20LB/DG
3 MICROPHONE IN (-) X792 20LB/DG
4 SENSOR GROUND X835 20OR/GY
5 - -
6 GROUND Z910 18BK
7 - -
8 - -
9 MICROPHONE FEED X793 20DG/YL
10 - -
11 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
12 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT

Component Location - 36

Fig. 36:

Component Location - 40

Fig. 40:

Component Location - 42

Fig. 42:

Component Location - 47
