C311

Component ID: 57
Component : C311

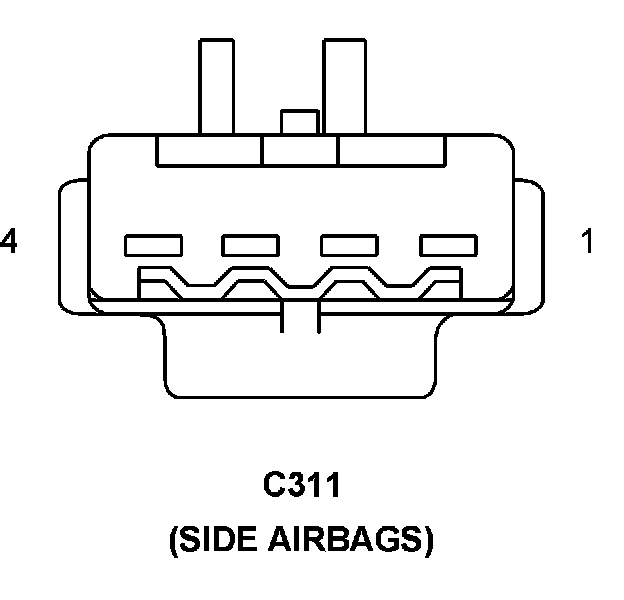

Connector:
Name : C311
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)
Gender : FEMALE




Pin Description Circuit
1 - -
2 - -
3 LEFT SEAT SQUIB 1 LINE 2 R5 20VT
3 RIGHT SEAT SQUIB 1 LINE 2 R6 20VT/LB
4 LEFT SEAT SQUIB 1 LINE 1 R7 20LG/GY
4 RIGHT SEAT SQUIB 1 LINE 1 R8 20GY/LG

Component Location - 57

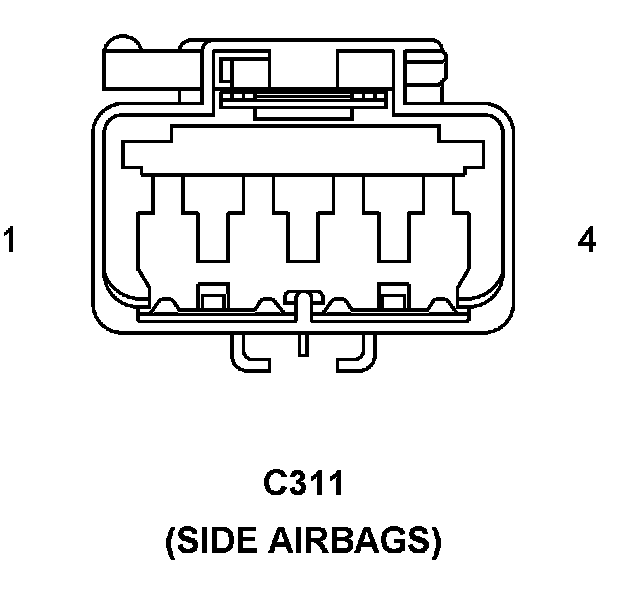

Connector:
Name : C311
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)
Gender : MALE




Pin Description Circuit
1 - -
2 - -
3 LEFT SEAT SQUIB 1 LINE 2 R5 18LB/VT
3 RIGHT SEAT SQUIB 1 LINE 2 R6 20VT/LB
4 LEFT SEAT SQUIB 1 LINE 1 R7 18LG/GY
4 RIGHT SEAT SQUIB 1 LINE 1 R8 20GY/LG

Component Location - 57
