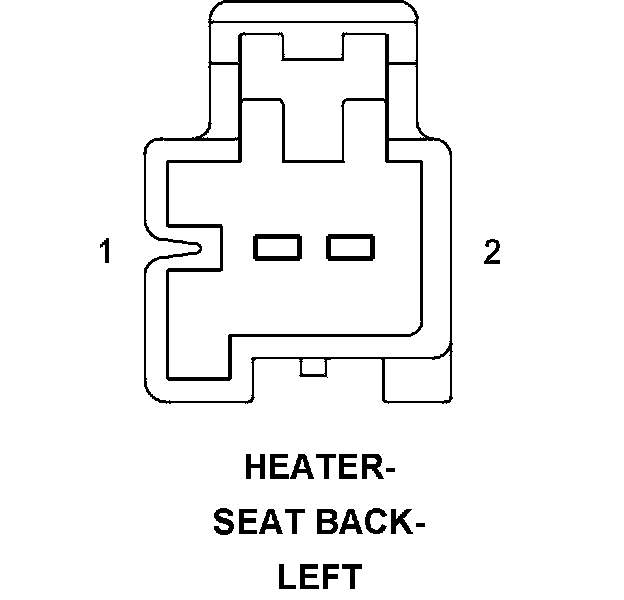

Heater-Seat Back-Left

Component ID: 128
Component : HEATER-SEAT BACK-LEFT

Connector:
Name : HEATER-SEAT BACK-LEFT
Color :
# of pins : 2




Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
2 GROUND Z914 18BK
